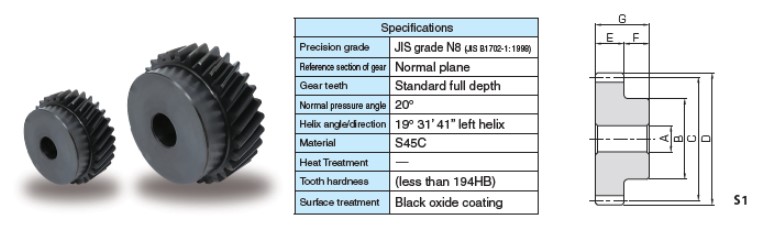

Item # |
List Price |
Module |
No. of teeth |
Bore (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|
| SHE1.5-20L SHE1.5-20L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of teeth N/A 20 | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.253 in31.83 mm | Outer Diameter (D) N/A 1.417 in36 mm | CAD N/A |
Add To Cart
Request Quote |
| SHE1.5-25L SHE1.5-25L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of teeth N/A 25 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.567 in39.79 mm | Outer Diameter (D) N/A 1.732 in44 mm | CAD N/A |
Add To Cart
Request Quote |
| SHE1.5-30L SHE1.5-30L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of teeth N/A 30 | Bore (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 1.880 in47.75 mm | Outer Diameter (D) N/A 2.047 in52 mm | CAD N/A |
Add To Cart
Request Quote |
| SHE2-18L SHE2-18L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of teeth N/A 18 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.504 in38.2 mm | Outer Diameter (D) N/A 1.732 in44 mm | CAD N/A |
Add To Cart
Request Quote |
| SHE2-24L SHE2-24L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of teeth N/A 24 | Bore (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 2.005 in50.93 mm | Outer Diameter (D) N/A 2.205 in56 mm | CAD N/A |
Add To Cart
Request Quote |
| SHE2-30L SHE2-30L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of teeth N/A 30 | Bore (A) N/A 0.709 in18 mm | Pitch Diameter (C) N/A 2.506 in63.66 mm | Outer Diameter (D) N/A 2.677 in68 mm | CAD N/A |
Add To Cart
Request Quote |
| SHE3-20L SHE3-20L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | No. of teeth N/A 20 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.506 in63.66 mm | Outer Diameter (D) N/A 2.835 in72 mm | CAD N/A |
Add To Cart
Request Quote |
| SHE3-25L SHE3-25L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | No. of teeth N/A 25 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.133 in79.58 mm | Outer Diameter (D) N/A 3.465 in88 mm | CAD N/A |
Add To Cart
Request Quote |
| SHE3-30L SHE3-30L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | No. of teeth N/A 30 | Bore (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 3.759 in95.49 mm | Outer Diameter (D) N/A 4.094 in104 mm | CAD N/A |
Add To Cart
Request Quote |
| SHE4-18L SHE4-18L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 4 | No. of teeth N/A 18 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.007 in76.39 mm | Outer Diameter (D) N/A 3.386 in86 mm | CAD N/A |
Add To Cart
Request Quote |
| SHE4-24L SHE4-24L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 4 | No. of teeth N/A 24 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 4.010 in101.86 mm | Outer Diameter (D) N/A 4.409 in112 mm | CAD N/A |
Add To Cart
Request Quote |
| SHE4-30L SHE4-30L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 4 | No. of teeth N/A 30 | Bore (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 5.013 in127.32 mm | Outer Diameter (D) N/A 5.433 in138 mm | CAD N/A |
Add To Cart
Request Quote |
| SHE5-18L SHE5-18L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 5 | No. of teeth N/A 18 | Bore (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 3.759 in95.49 mm | Outer Diameter (D) N/A 4.331 in110 mm | CAD N/A |
Add To Cart
Request Quote |
| SHE5-24L SHE5-24L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 5 | No. of teeth N/A 24 | Bore (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 5.013 in127.32 mm | Outer Diameter (D) N/A 5.591 in142 mm | CAD N/A |
Add To Cart
Request Quote |
| SHE6-20L SHE6-20L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 6 | No. of teeth N/A 20 | Bore (A) N/A 1.181 in30 mm | Pitch Diameter (C) N/A 5.013 in127.32 mm | Outer Diameter (D) N/A 5.669 in144 mm | CAD N/A |
Add To Cart
Request Quote |
| SHE6-25L SHE6-25L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 6 | No. of teeth N/A 25 | Bore (A) N/A 1.181 in30 mm | Pitch Diameter (C) N/A 6.266 in159.15 mm | Outer Diameter (D) N/A 6.929 in176 mm | CAD N/A |
Add To Cart
Request Quote |
