Helical Gears (SH)

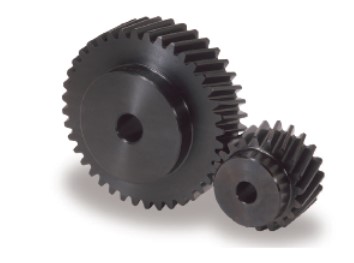

Helical Gears
Having larger contact ratios compared to the SS spur gears, effective in reducing noise and vibration.
Item # |
List Price |
Tansverse Module |
No. of Teeth |
Direction of Helix |
Shape |
Bore Diameter (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Total Length (G) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|

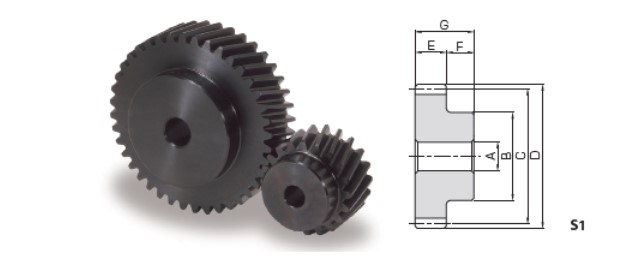

| SH2-15L SH2-15L/Asset/Helical-Gears--SH-.jpg | QUOTE | Tansverse Module N/A 2 | No. of Teeth N/A 15 | Direction of Helix N/A Left Hand | Shape N/A S1 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.223 in31.06 mm | Outer Diameter (D) N/A 1.380 in35.06 mm | Total Length (G) N/A 1.378 in35 mm | CAD N/A |
Add To Cart
Request Quote |
| SH2-15R SH2-15R/Asset/Helical-Gears--SH-.jpg | QUOTE | Tansverse Module N/A 2 | No. of Teeth N/A 15 | Direction of Helix N/A Right Hand | Shape N/A S1 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.223 in31.06 mm | Outer Diameter (D) N/A 1.380 in35.06 mm | Total Length (G) N/A 1.378 in35 mm | CAD N/A |
Add To Cart
Request Quote |
| SH2-20L SH2-20L/Asset/Helical-Gears--SH-.jpg | QUOTE | Tansverse Module N/A 2 | No. of Teeth N/A 20 | Direction of Helix N/A Left Hand | Shape N/A S1 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.630 in41.41 mm | Outer Diameter (D) N/A 1.788 in45.41 mm | Total Length (G) N/A 1.378 in35 mm | CAD N/A |
Add To Cart
Request Quote |
| SH2-20R SH2-20R/Asset/Helical-Gears--SH-.jpg | QUOTE | Tansverse Module N/A 2 | No. of Teeth N/A 20 | Direction of Helix N/A Right Hand | Shape N/A S1 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.630 in41.41 mm | Outer Diameter (D) N/A 1.788 in45.41 mm | Total Length (G) N/A 1.378 in35 mm | CAD N/A |
Add To Cart
Request Quote |
| SH2-30L SH2-30L/Asset/Helical-Gears--SH-.jpg | QUOTE | Tansverse Module N/A 2 | No. of Teeth N/A 30 | Direction of Helix N/A Left Hand | Shape N/A S1 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 2.446 in62.12 mm | Outer Diameter (D) N/A 2.603 in66.12 mm | Total Length (G) N/A 1.378 in35 mm | CAD N/A |
Add To Cart
Request Quote |
| SH2-30R SH2-30R/Asset/Helical-Gears--SH-.jpg | QUOTE | Tansverse Module N/A 2 | No. of Teeth N/A 30 | Direction of Helix N/A Right Hand | Shape N/A S1 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 2.446 in62.12 mm | Outer Diameter (D) N/A 2.603 in66.12 mm | Total Length (G) N/A 1.378 in35 mm | CAD N/A |
Add To Cart
Request Quote |
| SH2-40L SH2-40L/Asset/Helical-Gears--SH-.jpg | QUOTE | Tansverse Module N/A 2 | No. of Teeth N/A 40 | Direction of Helix N/A Left Hand | Shape N/A S1 | Bore Diameter (A) N/A 0.709 in18 mm | Pitch Diameter (C) N/A 3.261 in82.82 mm | Outer Diameter (D) N/A 3.418 in86.82 mm | Total Length (G) N/A 1.378 in35 mm | CAD N/A |
Add To Cart
Request Quote |
| SH2-40R SH2-40R/Asset/Helical-Gears--SH-.jpg | QUOTE | Tansverse Module N/A 2 | No. of Teeth N/A 40 | Direction of Helix N/A Right Hand | Shape N/A S1 | Bore Diameter (A) N/A 0.709 in18 mm | Pitch Diameter (C) N/A 3.261 in82.82 mm | Outer Diameter (D) N/A 3.418 in86.82 mm | Total Length (G) N/A 1.378 in35 mm | CAD N/A |
Add To Cart
Request Quote |
| SH2-60L SH2-60L/Asset/Helical-Gears--SH-.jpg | QUOTE | Tansverse Module N/A 2 | No. of Teeth N/A 60 | Direction of Helix N/A Left Hand | Shape N/A S1 | Bore Diameter (A) N/A 0.709 in18 mm | Pitch Diameter (C) N/A 4.891 in124.23 mm | Outer Diameter (D) N/A 5.048 in128.23 mm | Total Length (G) N/A 1.378 in35 mm | CAD N/A |
Add To Cart
Request Quote |
| SH2-60R SH2-60R/Asset/Helical-Gears--SH-.jpg | QUOTE | Tansverse Module N/A 2 | No. of Teeth N/A 60 | Direction of Helix N/A Right Hand | Shape N/A S1 | Bore Diameter (A) N/A 0.709 in18 mm | Pitch Diameter (C) N/A 4.891 in124.23 mm | Outer Diameter (D) N/A 5.048 in128.23 mm | Total Length (G) N/A 1.378 in35 mm | CAD N/A |
Add To Cart
Request Quote |
| SH2-90L SH2-90L/Asset/Helical-Gears--SH-.jpg | QUOTE | Tansverse Module N/A 2 | No. of Teeth N/A 90 | Direction of Helix N/A Left Hand | Shape N/A S1 | Bore Diameter (A) N/A 0.709 in18 mm | Pitch Diameter (C) N/A 7.337 in186.35 mm | Outer Diameter (D) N/A 7.494 in190.35 mm | Total Length (G) N/A 1.378 in35 mm | CAD N/A |
Add To Cart
Request Quote |
| SH2-90R SH2-90R/Asset/Helical-Gears--SH-.jpg | QUOTE | Tansverse Module N/A 2 | No. of Teeth N/A 90 | Direction of Helix N/A Right Hand | Shape N/A S1 | Bore Diameter (A) N/A 0.709 in18 mm | Pitch Diameter (C) N/A 7.337 in186.35 mm | Outer Diameter (D) N/A 7.494 in190.35 mm | Total Length (G) N/A 1.378 in35 mm | CAD N/A |
Add To Cart
Request Quote |
| SH3-15L SH3-15L/Asset/Helical-Gears--SH-.jpg | QUOTE | Tansverse Module N/A 3 | No. of Teeth N/A 15 | Direction of Helix N/A Left Hand | Shape N/A S1 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 1.834 in46.59 mm | Outer Diameter (D) N/A 2.070 in52.59 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| SH3-15R SH3-15R/Asset/Helical-Gears--SH-.jpg | QUOTE | Tansverse Module N/A 3 | No. of Teeth N/A 15 | Direction of Helix N/A Right Hand | Shape N/A S1 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 1.834 in46.59 mm | Outer Diameter (D) N/A 2.070 in52.59 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| SH3-20L SH3-20L/Asset/Helical-Gears--SH-.jpg | QUOTE | Tansverse Module N/A 3 | No. of Teeth N/A 20 | Direction of Helix N/A Left Hand | Shape N/A S1 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 2.446 in62.12 mm | Outer Diameter (D) N/A 2.682 in68.12 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| SH3-20R SH3-20R/Asset/Helical-Gears--SH-.jpg | QUOTE | Tansverse Module N/A 3 | No. of Teeth N/A 20 | Direction of Helix N/A Right Hand | Shape N/A S1 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 2.446 in62.12 mm | Outer Diameter (D) N/A 2.682 in68.12 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| SH3-30L SH3-30L/Asset/Helical-Gears--SH-.jpg | QUOTE | Tansverse Module N/A 3 | No. of Teeth N/A 30 | Direction of Helix N/A Left Hand | Shape N/A S1 | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.668 in93.17 mm | Outer Diameter (D) N/A 3.904 in99.17 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| SH3-30R SH3-30R/Asset/Helical-Gears--SH-.jpg | QUOTE | Tansverse Module N/A 3 | No. of Teeth N/A 30 | Direction of Helix N/A Right Hand | Shape N/A S1 | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.668 in93.17 mm | Outer Diameter (D) N/A 3.904 in99.17 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| SH3-40L SH3-40L/Asset/Helical-Gears--SH-.jpg | QUOTE | Tansverse Module N/A 3 | No. of Teeth N/A 40 | Direction of Helix N/A Left Hand | Shape N/A S1 | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 4.891 in124.23 mm | Outer Diameter (D) N/A 5.127 in130.23 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| SH3-40R SH3-40R/Asset/Helical-Gears--SH-.jpg | QUOTE | Tansverse Module N/A 3 | No. of Teeth N/A 40 | Direction of Helix N/A Right Hand | Shape N/A S1 | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 4.891 in124.23 mm | Outer Diameter (D) N/A 5.127 in130.23 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| SH3-60L SH3-60L/Asset/Helical-Gears--SH-.jpg | QUOTE | Tansverse Module N/A 3 | No. of Teeth N/A 60 | Direction of Helix N/A Left Hand | Shape N/A S1 | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 7.337 in186.35 mm | Outer Diameter (D) N/A 7.573 in192.35 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| SH3-60R SH3-60R/Asset/Helical-Gears--SH-.jpg | QUOTE | Tansverse Module N/A 3 | No. of Teeth N/A 60 | Direction of Helix N/A Right Hand | Shape N/A S1 | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 7.337 in186.35 mm | Outer Diameter (D) N/A 7.573 in192.35 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
