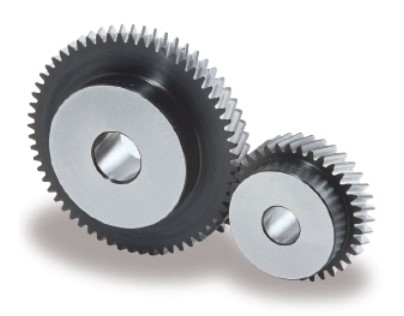

Ground Helical Gears (KHG) On KHK Gears

KHK USA Metric Gears

Have excellent strength and wear resistance which allow your designs to be more compact.

1 - 25 of 1924 | Results Per Page | View | Unit of Measure

1 2 3 4 5 »

Request Information Compare Items Search by Specification

Clear Filter

Bore Type

Tansverse Module

No. of Teeth

Direction of Helix

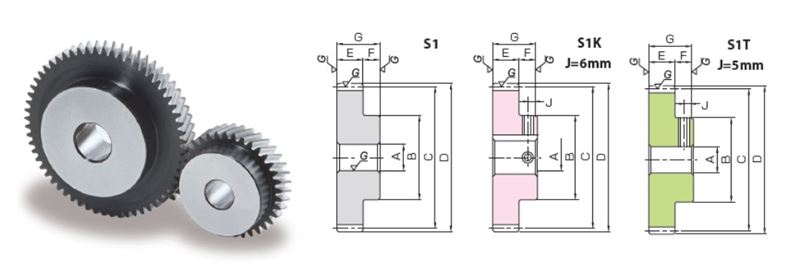

Shape

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Total Length (G) (in)

Total Length (G) (mm)

Item #	List Price	Bore Type	Tansverse Module	No. of Teeth	Direction of Helix	Shape	Bore Diameter (A)	Pitch Diameter (C)	Outer Diameter (D)	Total Length (G)	CAD	Add To Cart/Request Quote

KHG1-20L	QUOTE	N/A Ground	N/A 1	N/A 20	N/A Left Hand	N/A S1	N/A 0.236 in6 mm	N/A 0.787 in20 mm	N/A 0.866 in22 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-20LJ6	QUOTE	N/A Finished	N/A 1	N/A 20	N/A Left Hand	N/A S1T	N/A 0.236 in6 mm	N/A 0.787 in20 mm	N/A 0.866 in22 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-20R	QUOTE	N/A Ground	N/A 1	N/A 20	N/A Right Hand	N/A S1	N/A 0.236 in6 mm	N/A 0.787 in20 mm	N/A 0.866 in22 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-20RJ6	QUOTE	N/A Finished	N/A 1	N/A 20	N/A Right Hand	N/A S1T	N/A 0.236 in6 mm	N/A 0.787 in20 mm	N/A 0.866 in22 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-22L	QUOTE	N/A Ground	N/A 1	N/A 22	N/A Left Hand	N/A S1	N/A 0.315 in8 mm	N/A 0.866 in22 mm	N/A 0.945 in24 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-22LJ8	QUOTE	N/A Finished	N/A 1	N/A 22	N/A Left Hand	N/A S1T	N/A 0.315 in8 mm	N/A 0.866 in22 mm	N/A 0.945 in24 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-22R	QUOTE	N/A Ground	N/A 1	N/A 22	N/A Right Hand	N/A S1	N/A 0.315 in8 mm	N/A 0.866 in22 mm	N/A 0.945 in24 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-22RJ8	QUOTE	N/A Finished	N/A 1	N/A 22	N/A Right Hand	N/A S1T	N/A 0.315 in8 mm	N/A 0.866 in22 mm	N/A 0.945 in24 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-24L	QUOTE	N/A Ground	N/A 1	N/A 24	N/A Left Hand	N/A S1	N/A 0.315 in8 mm	N/A 0.945 in24 mm	N/A 1.024 in26 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-24LJ8	QUOTE	N/A Finished	N/A 1	N/A 24	N/A Left Hand	N/A S1T	N/A 0.315 in8 mm	N/A 0.945 in24 mm	N/A 1.024 in26 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-24R	QUOTE	N/A Ground	N/A 1	N/A 24	N/A Right Hand	N/A S1	N/A 0.315 in8 mm	N/A 0.945 in24 mm	N/A 1.024 in26 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-24RJ8	QUOTE	N/A Finished	N/A 1	N/A 24	N/A Right Hand	N/A S1T	N/A 0.315 in8 mm	N/A 0.945 in24 mm	N/A 1.024 in26 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-25L	QUOTE	N/A Ground	N/A 1	N/A 25	N/A Left Hand	N/A S1	N/A 0.315 in8 mm	N/A 0.984 in25 mm	N/A 1.063 in27 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-25LJ8	QUOTE	N/A Finished	N/A 1	N/A 25	N/A Left Hand	N/A S1T	N/A 0.315 in8 mm	N/A 0.984 in25 mm	N/A 1.063 in27 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-25R	QUOTE	N/A Ground	N/A 1	N/A 25	N/A Right Hand	N/A S1	N/A 0.315 in8 mm	N/A 0.984 in25 mm	N/A 1.063 in27 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-25RJ8	QUOTE	N/A Finished	N/A 1	N/A 25	N/A Right Hand	N/A S1T	N/A 0.315 in8 mm	N/A 0.984 in25 mm	N/A 1.063 in27 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-28L	QUOTE	N/A Ground	N/A 1	N/A 28	N/A Left Hand	N/A S1	N/A 0.315 in8 mm	N/A 1.102 in28 mm	N/A 1.181 in30 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-28LJ8	QUOTE	N/A Finished	N/A 1	N/A 28	N/A Left Hand	N/A S1T	N/A 0.315 in8 mm	N/A 1.102 in28 mm	N/A 1.181 in30 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-28R	QUOTE	N/A Ground	N/A 1	N/A 28	N/A Right Hand	N/A S1	N/A 0.315 in8 mm	N/A 1.102 in28 mm	N/A 1.181 in30 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-28RJ8	QUOTE	N/A Finished	N/A 1	N/A 28	N/A Right Hand	N/A S1T	N/A 0.315 in8 mm	N/A 1.102 in28 mm	N/A 1.181 in30 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-30L	QUOTE	N/A Ground	N/A 1	N/A 30	N/A Left Hand	N/A S1	N/A 0.394 in10 mm	N/A 1.181 in30 mm	N/A 1.260 in32 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-30LJ10	QUOTE	N/A Finished	N/A 1	N/A 30	N/A Left Hand	N/A S1K	N/A 0.394 in10 mm	N/A 1.181 in30 mm	N/A 1.260 in32 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-30LJ12	QUOTE	N/A Finished	N/A 1	N/A 30	N/A Left Hand	N/A S1K	N/A 0.472 in12 mm	N/A 1.181 in30 mm	N/A 1.260 in32 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-30R	QUOTE	N/A Ground	N/A 1	N/A 30	N/A Right Hand	N/A S1	N/A 0.394 in10 mm	N/A 1.181 in30 mm	N/A 1.260 in32 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
KHG1-30RJ10	QUOTE	N/A Finished	N/A 1	N/A 30	N/A Right Hand	N/A S1K	N/A 0.394 in10 mm	N/A 1.181 in30 mm	N/A 1.260 in32 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
