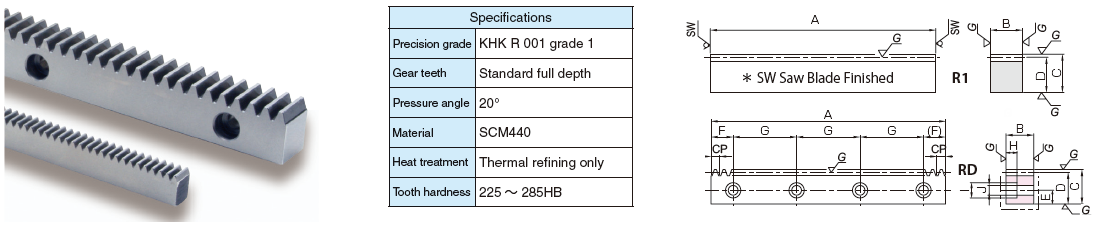

CP Thermal Refined Ground Racks (KRGCP - KRGCPF - KRGCPD)
CP Rack & Pinions
High strength and abrasion-resistant for precision linear motion.
Item # |
List Price |
Module |
No. of Teeth |
Effective No. of Teeth |
Shape |
Total Length Rack (A) |
Face Width (B) |
Height (C) |
Height To Pitch Line (D) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KRGCP10-100 KRGCP10-100/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | No. of Teeth N/A | Effective No. of Teeth N/A 8 | Shape N/A R1 | Total Length Rack (A) N/A 3.858 in98 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.253 in31.82 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGCP10-500 KRGCP10-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | No. of Teeth N/A | Effective No. of Teeth N/A 49 | Shape N/A R1 | Total Length Rack (A) N/A 19.882 in505 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.253 in31.82 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGCP5-100 KRGCP5-100/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5915 | No. of Teeth N/A | Effective No. of Teeth N/A 18 | Shape N/A R1 | Total Length Rack (A) N/A 3.858 in98 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.725 in18.41 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGCP5-500 KRGCP5-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5915 | No. of Teeth N/A | Effective No. of Teeth N/A 99 | Shape N/A R1 | Total Length Rack (A) N/A 19.882 in505 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.725 in18.41 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGCPD10-500 KRGCPD10-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | No. of Teeth N/A 50 | Effective No. of Teeth N/A | Shape N/A RD | Total Length Rack (A) N/A 19.685 in500 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.253 in31.82 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGCPD5-500 KRGCPD5-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5915 | No. of Teeth N/A 100 | Effective No. of Teeth N/A | Shape N/A RD | Total Length Rack (A) N/A 19.685 in500 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.725 in18.41 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGCPF10-1000 KRGCPF10-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | No. of Teeth N/A 100 | Effective No. of Teeth N/A | Shape N/A RF | Total Length Rack (A) N/A 39.370 in1000 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.253 in31.82 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGCPF5-1000 KRGCPF5-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5915 | No. of Teeth N/A 200 | Effective No. of Teeth N/A | Shape N/A RF | Total Length Rack (A) N/A 39.370 in1000 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.725 in18.41 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGCPF10-500 KRGCPF10-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | No. of Teeth N/A 50 | Effective No. of Teeth N/A | Shape N/A RF | Total Length Rack (A) N/A 19.685 in500 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.292 in32.82 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGCPF5-500 KRGCPF5-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5915 | No. of Teeth N/A 100 | Effective No. of Teeth N/A | Shape N/A RF | Total Length Rack (A) N/A 19.685 in500 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.292 in32.82 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGCPFD10-1000J KRGCPFD10-1000J/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | No. of Teeth N/A 100 | Effective No. of Teeth N/A | Shape N/A RD | Total Length Rack (A) N/A 39.370 in1000 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.253 in31.82 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGCPFD10-500J KRGCPFD10-500J/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | No. of Teeth N/A 50 | Effective No. of Teeth N/A | Shape N/A RD | Total Length Rack (A) N/A 19.685 in500 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.253 in31.82 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGCPFD5-1000J KRGCPFD5-1000J/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5915 | No. of Teeth N/A 100 | Effective No. of Teeth N/A | Shape N/A RD | Total Length Rack (A) N/A 39.370 in1000 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.725 in18.41 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGCPFD5-500J KRGCPFD5-500J/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5915 | No. of Teeth N/A 200 | Effective No. of Teeth N/A | Shape N/A RD | Total Length Rack (A) N/A 19.685 in500 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.725 in18.41 mm | CAD N/A |
Add To Cart
Request Quote |
