• STRCPF---STRCPFD---Category

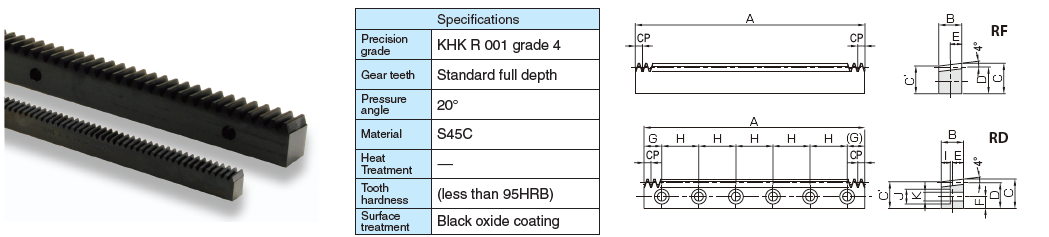

  • CP-Tapered-Racks--STRCPF---STRCPFD-
By pairing with KTSCP pinion, the backlash may be adjusted.
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

List Price

Module

Effective No. of Teeth

Shape

Total Length Rack (A)

Face Width (B)

Height (C)

Height To Pitch Line (D)

CAD

Add To Cart/Request Quote
QUOTE N/A 3.1831 N/A 100 N/A RF N/A 39.370 in1000 mm N/A 1.181 in30 mm N/A 1.358 in34.5 mm N/A 1.192 in30.27 mm N/A Add To Cart
Request Quote
QUOTE N/A 1.5915 N/A 200 N/A RF N/A 39.370 in1000 mm N/A 0.591 in15 mm N/A 0.768 in19.5 mm N/A 0.684 in17.38 mm N/A Add To Cart
Request Quote
QUOTE N/A 3.1831 N/A 100 N/A RD N/A 39.370 in1000 mm N/A 1.181 in30 mm N/A 1.358 in34.5 mm N/A 1.192 in30.27 mm N/A Add To Cart
Request Quote
QUOTE N/A 1.5915 N/A 200 N/A RD N/A 39.370 in1000 mm N/A 0.591 in15 mm N/A 0.768 in19.5 mm N/A 0.684 in17.38 mm N/A Add To Cart
Request Quote
