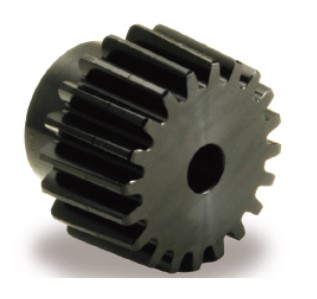

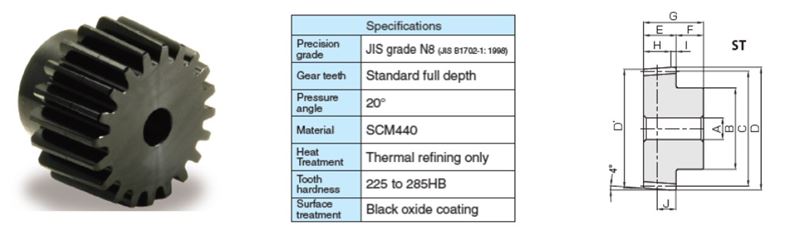

CP Tapered Pinions (KTSCP)
CP Rack & Pinions
By pairing with STRCPF rack, the backlash may be adjusted.
Item # |
List Price |
Module |
Circular Pitch |
No. of Teeth |
Shape |
Bore Diameter (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Total Length (G) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KTSCP5-20 KTSCP5-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5915 | Circular Pitch N/A 5 | No. of Teeth N/A 20 | Shape N/A ST | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.253 in31.83 mm | Outer Diameter (D) N/A 1.420 in36.06 mm | Total Length (G) N/A 1.299 in33 mm | CAD N/A |
Add To Cart
Request Quote |
| KTSCP5-25 KTSCP5-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5915 | Circular Pitch N/A 5 | No. of Teeth N/A 25 | Shape N/A ST | Bore Diameter (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.567 in39.79 mm | Outer Diameter (D) N/A 1.733 in44.02 mm | Total Length (G) N/A 1.299 in33 mm | CAD N/A |
Add To Cart
Request Quote |
| KTSCP5-30 KTSCP5-30/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5915 | Circular Pitch N/A 5 | No. of Teeth N/A 30 | Shape N/A ST | Bore Diameter (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.880 in47.75 mm | Outer Diameter (D) N/A 2.046 in51.98 mm | Total Length (G) N/A 1.299 in33 mm | CAD N/A |
Add To Cart
Request Quote |
| KTSCP5-40 KTSCP5-40/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5915 | Circular Pitch N/A 5 | No. of Teeth N/A 40 | Shape N/A ST | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 2.506 in63.66 mm | Outer Diameter (D) N/A 2.673 in67.89 mm | Total Length (G) N/A 1.299 in33 mm | CAD N/A |
Add To Cart
Request Quote |
| KTSCP10-20 KTSCP10-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | Circular Pitch N/A 10 | No. of Teeth N/A 20 | Shape N/A ST | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 2.506 in63.66 mm | Outer Diameter (D) N/A 2.840 in72.13 mm | Total Length (G) N/A 2.205 in56 mm | CAD N/A |
Add To Cart
Request Quote |
| KTSCP10-25 KTSCP10-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | Circular Pitch N/A 10 | No. of Teeth N/A 25 | Shape N/A ST | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.133 in79.58 mm | Outer Diameter (D) N/A 3.466 in88.04 mm | Total Length (G) N/A 2.205 in56 mm | CAD N/A |
Add To Cart
Request Quote |
| KTSCP10-30 KTSCP10-30/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | Circular Pitch N/A 10 | No. of Teeth N/A 30 | Shape N/A ST | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.759 in95.49 mm | Outer Diameter (D) N/A 4.093 in103.96 mm | Total Length (G) N/A 2.205 in56 mm | CAD N/A |
Add To Cart
Request Quote |
| KTSCP10-40 KTSCP10-40/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | Circular Pitch N/A 10 | No. of Teeth N/A 40 | Shape N/A ST | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 5.013 in127.32 mm | Outer Diameter (D) N/A 5.346 in135.79 mm | Total Length (G) N/A 2.205 in56 mm | CAD N/A |
Add To Cart
Request Quote |
