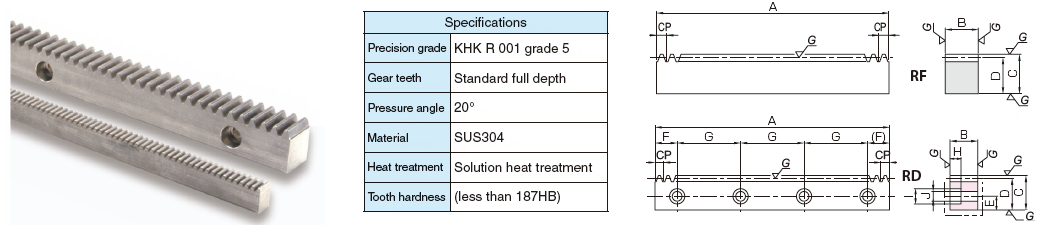

CP Stainless Steel Racks (SURCPF - SURCPFD)
CP Rack & Pinions
Suitable for food machinery due to SUS304 material’s rust-resistant quality.
Item # |
List Price |
Module |
No. of Teeth |
Shape |
Total Length Rack (A) |
Face Width (B) |
Height (C) |
Height To Pitch Line (D) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| SURCPF10-1000 SURCPF10-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | No. of Teeth N/A 100 | Shape N/A RF | Total Length Rack (A) N/A 39.370 in1000 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.253 in31.82 mm | CAD N/A |
Add To Cart
Request Quote |
| SURCPF10-500 SURCPF10-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | No. of Teeth N/A 50 | Shape N/A RF | Total Length Rack (A) N/A 19.685 in500 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.253 in31.82 mm | CAD N/A |
Add To Cart
Request Quote |
| SURCPF5-1000 SURCPF5-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5915 | No. of Teeth N/A 200 | Shape N/A RF | Total Length Rack (A) N/A 39.370 in1000 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.725 in18.41 mm | CAD N/A |
Add To Cart
Request Quote |
| SURCPF5-500 SURCPF5-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5915 | No. of Teeth N/A 100 | Shape N/A RF | Total Length Rack (A) N/A 19.685 in500 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.725 in18.41 mm | CAD N/A |
Add To Cart
Request Quote |
| SURCPFD10-1000 SURCPFD10-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | No. of Teeth N/A 100 | Shape N/A RD | Total Length Rack (A) N/A 39.370 in1000 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.253 in31.82 mm | CAD N/A |
Add To Cart
Request Quote |
| SURCPFD10-500J SURCPFD10-500J/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | No. of Teeth N/A 50 | Shape N/A RD | Total Length Rack (A) N/A 19.685 in500 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.253 in31.82 mm | CAD N/A |
Add To Cart
Request Quote |
| SURCPFD5-1000 SURCPFD5-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5915 | No. of Teeth N/A 200 | Shape N/A RD | Total Length Rack (A) N/A 39.370 in1000 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.725 in18.41 mm | CAD N/A |
Add To Cart
Request Quote |
| SURCPFD5-500J SURCPFD5-500J/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5915 | No. of Teeth N/A 100 | Shape N/A RD | Total Length Rack (A) N/A 19.685 in500 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.725 in18.41 mm | CAD N/A |
Add To Cart
Request Quote |
