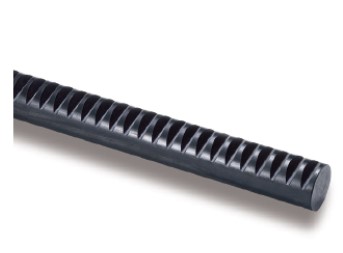

CP Round Racks (SROCP) On KHK Gears

Convenient in applications where the rack has reciprocal motion.

1 - 3 of 3 | Results Per Page | View | Unit of Measure

Request Information Compare Items

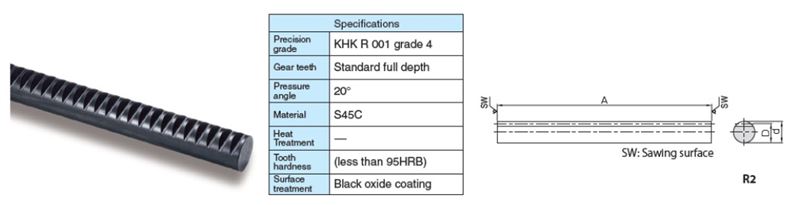

Item #	List Price	Module	Circular Pitch	Effective Number of Teeth	Shape	Total Length Rack (A)	Outer Diameter (d)	Height To Pitch Line (D)	CAD	Add To Cart/Request Quote

SROCP2.5-500	QUOTE	N/A 0.7958	N/A 2.5	N/A 200	N/A R2	N/A 19.882 in505 mm	N/A 0.394 in10 mm	N/A 0.362 in9.2 mm	N/A	Add To Cart Request Quote
SROCP5-500	QUOTE	N/A 1.5915	N/A 5	N/A 99	N/A R2	N/A 19.882 in505 mm	N/A 0.591 in15 mm	N/A 0.528 in13.41 mm	N/A	Add To Cart Request Quote
SROCP10-1000	QUOTE	N/A 3.1831	N/A 10	N/A 99	N/A R2	N/A 39.764 in1010 mm	N/A 1.181 in30 mm	N/A 1.056 in26.82 mm	N/A	Add To Cart Request Quote
