CP Metal Flexible Racks (FRCP) On KHK Gears

KHK USA Metric Gears

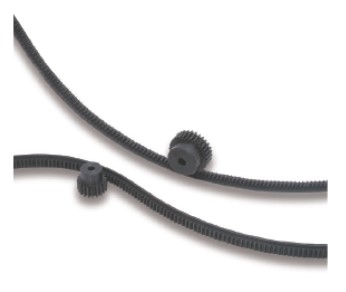

Cut continuously. Long length and bendable to a contour.

1 - 3 of 3 | Results Per Page | View | Unit of Measure

1

Request Information Compare Items

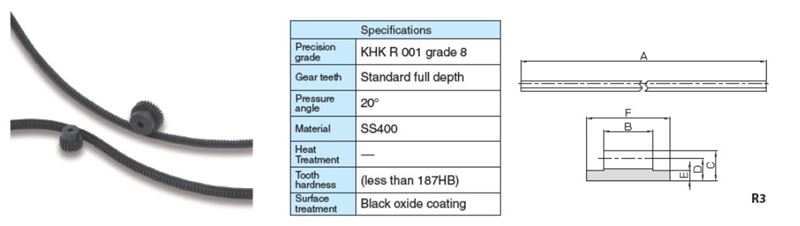

Item #	List Price	Module	Circular Pitch	Effective Number of Teeth	Shape	Total Length Rack (A)	Height (C)	Height to Pitch Line (D)	Width of Base (F)	CAD	Add To Cart/Request Quote

FRCP5-2000	QUOTE	N/A 1.5915	N/A 5	N/A 398	N/A R3	N/A 78.740 in2000 mm	N/A 0.236 in6 mm	N/A 0.174 in4.41 mm	N/A 0.669 in17 mm	N/A	Add To Cart Request Quote
FRCP5-3000	QUOTE	N/A 1.5915	N/A 5	N/A 598	N/A R3	N/A 118.110 in3000 mm	N/A 0.236 in6 mm	N/A 0.174 in4.41 mm	N/A 0.669 in17 mm	N/A	Add To Cart Request Quote
FRCP5-4000	QUOTE	N/A 1.5915	N/A 5	N/A 798	N/A R3	N/A 157.480 in4000 mm	N/A 0.236 in6 mm	N/A 0.174 in4.41 mm	N/A 0.669 in17 mm	N/A	Add To Cart Request Quote
