CP Hardened Ground Racks (MRGCPF - MRGCPFD) On KHK Gears

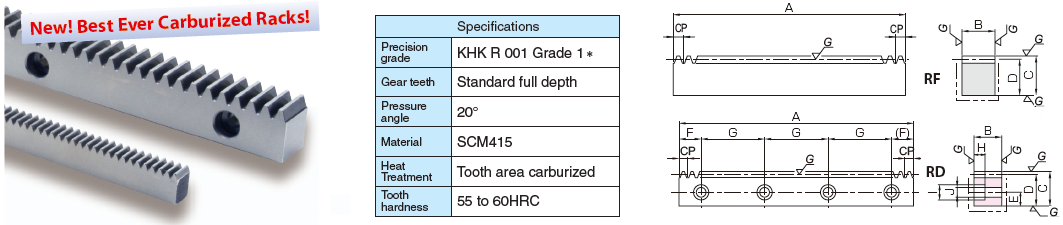

Has the highest strength and precision in the KHK standard rack series. Bolt holes can be remachined as carburizing is applied only within the tooth area. J Series products are also available.

1 - 4 of 4 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Item #	List Price	Module	No. of Teeth	Shape	Total Length Rack (A)	Face Width (B)	Height (C)	Height To Pitch Line (D)	CAD	Add To Cart/Request Quote

MRGCPF10-500	QUOTE	N/A 3.1831	N/A 50	N/A RF	N/A 19.685 in500 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.253 in31.82 mm	N/A	Add To Cart Request Quote
MRGCPF5-500	QUOTE	N/A 1.5915	N/A 100	N/A RF	N/A 19.685 in500 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.725 in18.41 mm	N/A	Add To Cart Request Quote
MRGCPFD10-500J	QUOTE	N/A 3.1831	N/A 50	N/A RD	N/A 19.685 in500 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.253 in31.82 mm	N/A	Add To Cart Request Quote
MRGCPFD5-500J	QUOTE	N/A 1.5915	N/A 100	N/A RD	N/A 19.685 in500 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.725 in18.41 mm	N/A	Add To Cart Request Quote
