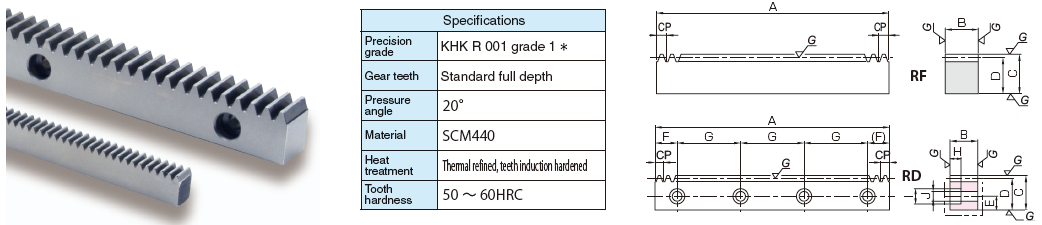

CP Hardened Ground Racks (KRGCPF/H - KRGCPFD/H)
CP Rack & Pinions
Heat treated ground gears with high precision and strength has excellent cost-performance ratio. J Series products are also available.
Item # |
List Price |
Module |
No. of Teeth |
Shape |
Total Length Rack (A) |
Face Width (B) |
Height (C) |
Height To Pitch Line (D) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| KRGCPF10-1000H KRGCPF10-1000H/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | No. of Teeth N/A 100 | Shape N/A RF | Total Length Rack (A) N/A 39.370 in1000 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.253 in31.82 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGCPF10-500H KRGCPF10-500H/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | No. of Teeth N/A 50 | Shape N/A RF | Total Length Rack (A) N/A 19.685 in500 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.253 in31.82 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGCPF5-1000H KRGCPF5-1000H/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5915 | No. of Teeth N/A 200 | Shape N/A RF | Total Length Rack (A) N/A 39.370 in1000 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.725 in18.41 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGCPF5-500H KRGCPF5-500H/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5915 | No. of Teeth N/A 100 | Shape N/A RF | Total Length Rack (A) N/A 19.685 in500 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.725 in18.41 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGCPFD10-1000HJ KRGCPFD10-1000HJ/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | No. of Teeth N/A 100 | Shape N/A RD | Total Length Rack (A) N/A 39.370 in1000 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.253 in31.82 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGCPFD10-500HJ KRGCPFD10-500HJ/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | No. of Teeth N/A 50 | Shape N/A RD | Total Length Rack (A) N/A 19.685 in500 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.253 in31.82 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGCPFD5-1000HJ KRGCPFD5-1000HJ/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5915 | No. of Teeth N/A 200 | Shape N/A RD | Total Length Rack (A) N/A 39.370 in1000 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.725 in18.41 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGCPFD5-500HJ KRGCPFD5-500HJ/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5915 | No. of Teeth N/A 100 | Shape N/A RD | Total Length Rack (A) N/A 19.685 in500 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.725 in18.41 mm | CAD N/A |
Add To Cart
Request Quote |
