Steel Bevel Gears (SB) On KHK Gears

KHK USA Metric Gears

Popular series of straight bevel gears for many uses.

1 - 25 of 102 | Results Per Page | View | Unit of Measure

1 2 3 4 5

Request Information Compare Items Search by Specification

Clear Filter

Gear Ratio

Module

No. of Teeth

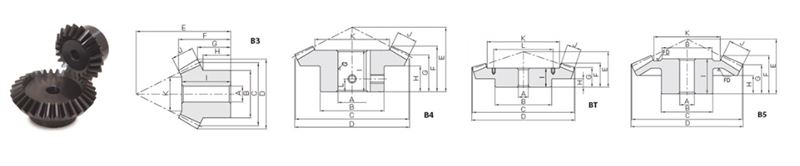

Shape

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Total Length (F) (in)

Total Length (F) (mm)

Item #	List Price	Gear Ratio	Module	No. of Teeth	Shape	Bore Diameter (A)	Pitch Diameter (C)	Outer Diameter (D)	Total Length (F)	CAD	Add To Cart/Request Quote

SB1-1545	QUOTE	N/A 3	N/A 1	N/A 15	N/A B3	N/A 0.236 in6 mm	N/A 0.591 in15 mm	N/A 0.696 in17.67 mm	N/A 0.493 in12.51 mm	N/A	Add To Cart Request Quote
SB1-1845	QUOTE	N/A 2.5	N/A 1	N/A 18	N/A B3	N/A 0.236 in6 mm	N/A 0.709 in18 mm	N/A 0.810 in20.57 mm	N/A 0.643 in16.34 mm	N/A	Add To Cart Request Quote
SB1-2040	QUOTE	N/A 2	N/A 1	N/A 20	N/A B3	N/A 0.236 in6 mm	N/A 0.787 in20 mm	N/A 0.882 in22.41 mm	N/A 0.543 in13.78 mm	N/A	Add To Cart Request Quote
SB1-4020	QUOTE	N/A 2	N/A 1	N/A 40	N/A B4	N/A 0.315 in8 mm	N/A 1.575 in40 mm	N/A 1.598 in40.59 mm	N/A 0.593 in15.07 mm	N/A	Add To Cart Request Quote
SB1-4515	QUOTE	N/A 3	N/A 1	N/A 45	N/A B4	N/A 0.315 in8 mm	N/A 1.772 in45 mm	N/A 1.786 in45.37 mm	N/A 0.463 in11.77 mm	N/A	Add To Cart Request Quote
SB1-4518	QUOTE	N/A 2.5	N/A 1	N/A 45	N/A B4	N/A 0.315 in8 mm	N/A 1.772 in45 mm	N/A 1.790 in45.46 mm	N/A 0.667 in16.95 mm	N/A	Add To Cart Request Quote
SB1.25-1545	QUOTE	N/A 3	N/A 1.25	N/A 15	N/A B3	N/A 0.315 in8 mm	N/A 0.738 in18.75 mm	N/A 0.870 in22.09 mm	N/A 0.624 in15.85 mm	N/A	Add To Cart Request Quote
SB1.25-1845	QUOTE	N/A 2.5	N/A 1.25	N/A 18	N/A B3	N/A 0.315 in8 mm	N/A 0.886 in22.5 mm	N/A 1.013 in25.72 mm	N/A 0.813 in20.66 mm	N/A	Add To Cart Request Quote
SB1.25-2040	QUOTE	N/A 2	N/A 1.25	N/A 20	N/A B3	N/A 0.315 in8 mm	N/A 0.984 in25 mm	N/A 1.103 in28.01 mm	N/A 0.735 in18.66 mm	N/A	Add To Cart Request Quote
SB1.25-4020	QUOTE	N/A 2	N/A 1.25	N/A 40	N/A B4	N/A 0.394 in10 mm	N/A 1.969 in50 mm	N/A 1.997 in50.73 mm	N/A 0.730 in18.54 mm	N/A	Add To Cart Request Quote
SB1.25-4515	QUOTE	N/A 3	N/A 1.25	N/A 45	N/A B4	N/A 0.394 in10 mm	N/A 2.215 in56.25 mm	N/A 2.233 in56.72 mm	N/A 0.575 in14.61 mm	N/A	Add To Cart Request Quote
SB1.25-4518	QUOTE	N/A 2.5	N/A 1.25	N/A 45	N/A B4	N/A 0.394 in10 mm	N/A 2.215 in56.25 mm	N/A 2.237 in56.82 mm	N/A 0.730 in18.53 mm	N/A	Add To Cart Request Quote
SB1.5-1530	QUOTE	N/A 2	N/A 1.5	N/A 15	N/A B3	N/A 0.236 in6 mm	N/A 0.886 in22.5 mm	N/A 1.028 in26.11 mm	N/A 0.678 in17.23 mm	N/A	Add To Cart Request Quote
SB1.5-1545	QUOTE	N/A 3	N/A 1.5	N/A 15	N/A B3	N/A 0.315 in8 mm	N/A 0.886 in22.5 mm	N/A 1.045 in26.54 mm	N/A 0.913 in23.19 mm	N/A	Add To Cart Request Quote
SB1.5-1560	QUOTE	N/A 4	N/A 1.5	N/A 15	N/A B3	N/A 0.315 in8 mm	N/A 0.886 in22.5 mm	N/A 1.050 in26.66 mm	N/A 0.906 in23.01 mm	N/A	Add To Cart Request Quote
SB1.5-1845	QUOTE	N/A 2.5	N/A 1.5	N/A 18	N/A B3	N/A 0.315 in8 mm	N/A 1.063 in27 mm	N/A 1.215 in30.86 mm	N/A 0.865 in21.97 mm	N/A	Add To Cart Request Quote
SB1.5-2030	QUOTE	N/A 1.5	N/A 1.5	N/A 20	N/A B3	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.304 in33.13 mm	N/A 0.733 in18.63 mm	N/A	Add To Cart Request Quote
SB1.5-2040	QUOTE	N/A 2	N/A 1.5	N/A 20	N/A B3	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.323 in33.61 mm	N/A 1.006 in25.54 mm	N/A	Add To Cart Request Quote
SB1.5-3015	QUOTE	N/A 2	N/A 1.5	N/A 30	N/A B4	N/A 0.315 in8 mm	N/A 1.772 in45 mm	N/A 1.806 in45.88 mm	N/A 0.703 in17.85 mm	N/A	Add To Cart Request Quote
SB1.5-3020	QUOTE	N/A 1.5	N/A 1.5	N/A 30	N/A B4	N/A 0.394 in10 mm	N/A 1.772 in45 mm	N/A 1.820 in46.24 mm	N/A 0.730 in18.53 mm	N/A	Add To Cart Request Quote
SB1.5-4020	QUOTE	N/A 2	N/A 1.5	N/A 40	N/A B4	N/A 0.394 in10 mm	N/A 2.362 in60 mm	N/A 2.397 in60.88 mm	N/A 0.985 in25.01 mm	N/A	Add To Cart Request Quote
SB1.5-4515	QUOTE	N/A 3	N/A 1.5	N/A 45	N/A B4	N/A 0.394 in10 mm	N/A 2.657 in67.5 mm	N/A 2.680 in68.06 mm	N/A 0.805 in20.44 mm	N/A	Add To Cart Request Quote
SB1.5-4518	QUOTE	N/A 2.5	N/A 1.5	N/A 45	N/A B4	N/A 0.394 in10 mm	N/A 2.657 in67.5 mm	N/A 2.684 in68.18 mm	N/A 0.831 in21.1 mm	N/A	Add To Cart Request Quote
SB1.5-6015	QUOTE	N/A 4	N/A 1.5	N/A 60	N/A B4	N/A 0.472 in12 mm	N/A 3.543 in90 mm	N/A 3.559 in90.41 mm	N/A 0.953 in24.2 mm	N/A	Add To Cart Request Quote
SB2-1530	QUOTE	N/A 2	N/A 2	N/A 15	N/A B3	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.370 in34.81 mm	N/A 0.811 in20.59 mm	N/A	Add To Cart Request Quote

1 - 25 of 102 | Results Per Page | View | Unit of Measure

1 2 3 4 5
