Spiral Bevel Gears (SBS) On KHK Gears

KHK USA Metric Gears

Large nos. of teeth and modules are offered in these affordable spiral bevel gears.

1 - 25 of 58 | Results Per Page | View | Unit of Measure

1 2 3

Request Information Compare Items Search by Specification

Clear Filter

Gear Ratio

Module

No. of Teeth

Direction of Spiral

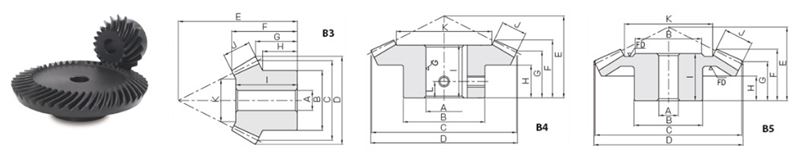

Shape

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Total Length (F) (in)

Total Length (F) (mm)

Item #	List Price	Gear Ratio	Module	No. of Teeth	Direction of Spiral	Shape	Bore Diameter (A)	Pitch Diameter (C)	Outer Diameter (D)	Total Length (F)	CAD	Add To Cart/Request Quote

SBS1-2040L	QUOTE	N/A 2	N/A 1	N/A 20	N/A Left Hand	N/A B3	N/A 0.236 in6 mm	N/A 0.787 in20 mm	N/A 0.869 in22.08 mm	N/A 0.541 in13.73 mm	N/A	Add To Cart Request Quote
SBS1-4020R	QUOTE	N/A 2	N/A 1	N/A 40	N/A Right Hand	N/A B4	N/A 0.315 in8 mm	N/A 1.575 in40 mm	N/A 1.595 in40.52 mm	N/A 0.591 in15.02 mm	N/A	Add To Cart Request Quote
SBS1.5-1560L	QUOTE	N/A 4	N/A 1.5	N/A 15	N/A Left Hand	N/A B3	N/A 0.315 in8 mm	N/A 0.886 in22.5 mm	N/A 1.027 in26.09 mm	N/A 0.904 in22.95 mm	N/A	Add To Cart Request Quote
SBS1.5-2040L	QUOTE	N/A 2	N/A 1.5	N/A 20	N/A Left Hand	N/A B3	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.302 in33.08 mm	N/A 1.002 in25.45 mm	N/A	Add To Cart Request Quote
SBS1.5-4020R	QUOTE	N/A 2	N/A 1.5	N/A 40	N/A Right Hand	N/A B4	N/A 0.394 in10 mm	N/A 2.362 in60 mm	N/A 2.392 in60.75 mm	N/A 0.981 in24.93 mm	N/A	Add To Cart Request Quote
SBS1.5-6015R	QUOTE	N/A 4	N/A 1.5	N/A 60	N/A Right Hand	N/A B4	N/A 0.472 in12 mm	N/A 3.543 in90 mm	N/A 3.557 in90.36 mm	N/A 0.948 in24.08 mm	N/A	Add To Cart Request Quote
SBS2-1545L	QUOTE	N/A 3	N/A 2	N/A 15	N/A Left Hand	N/A B3	N/A 0.394 in10 mm	N/A 1.181 in30 mm	N/A 1.369 in34.78 mm	N/A 1.168 in29.66 mm	N/A	Add To Cart Request Quote
SBS2-1560L	QUOTE	N/A 4	N/A 2	N/A 15	N/A Left Hand	N/A B3	N/A 0.394 in10 mm	N/A 1.181 in30 mm	N/A 1.365 in34.68 mm	N/A 1.218 in30.94 mm	N/A	Add To Cart Request Quote
SBS2-1845L	QUOTE	N/A 2.5	N/A 2	N/A 18	N/A Left Hand	N/A B3	N/A 0.394 in10 mm	N/A 1.417 in36 mm	N/A 1.591 in40.42 mm	N/A 1.124 in28.54 mm	N/A	Add To Cart Request Quote
SBS2-2030L	QUOTE	N/A 1.5	N/A 2	N/A 20	N/A Left Hand	N/A B3	N/A 0.394 in10 mm	N/A 1.575 in40 mm	N/A 1.712 in43.49 mm	N/A 0.983 in24.96 mm	N/A	Add To Cart Request Quote
SBS2-2040L	QUOTE	N/A 2	N/A 2	N/A 20	N/A Left Hand	N/A B3	N/A 0.472 in12 mm	N/A 1.575 in40 mm	N/A 1.736 in44.1 mm	N/A 1.340 in34.04 mm	N/A	Add To Cart Request Quote
SBS2-3020R	QUOTE	N/A 1.5	N/A 2	N/A 30	N/A Right Hand	N/A B4	N/A 0.472 in12 mm	N/A 2.362 in60 mm	N/A 2.416 in61.36 mm	N/A 1.055 in26.8 mm	N/A	Add To Cart Request Quote
SBS2-4020R	QUOTE	N/A 2	N/A 2	N/A 40	N/A Right Hand	N/A B4	N/A 0.472 in12 mm	N/A 3.150 in80 mm	N/A 3.189 in81 mm	N/A 1.270 in32.27 mm	N/A	Add To Cart Request Quote
SBS2-4515R	QUOTE	N/A 3	N/A 2	N/A 45	N/A Right Hand	N/A B4	N/A 0.472 in12 mm	N/A 3.543 in90 mm	N/A 3.570 in90.67 mm	N/A 1.193 in30.29 mm	N/A	Add To Cart Request Quote
SBS2-4518R	QUOTE	N/A 2.5	N/A 2	N/A 45	N/A Right Hand	N/A B4	N/A 0.472 in12 mm	N/A 3.543 in90 mm	N/A 3.574 in90.79 mm	N/A 1.089 in27.67 mm	N/A	Add To Cart Request Quote
SBS2-6015R	QUOTE	N/A 4	N/A 2	N/A 60	N/A Right Hand	N/A B4	N/A 0.591 in15 mm	N/A 4.724 in120 mm	N/A 4.743 in120.46 mm	N/A 1.240 in31.5 mm	N/A	Add To Cart Request Quote
SBS2.5-1545L	QUOTE	N/A 3	N/A 2.5	N/A 15	N/A Left Hand	N/A B3	N/A 0.472 in12 mm	N/A 1.476 in37.5 mm	N/A 1.707 in43.36 mm	N/A 1.507 in38.27 mm	N/A	Add To Cart Request Quote
SBS2.5-1560L	QUOTE	N/A 4	N/A 2.5	N/A 15	N/A Left Hand	N/A B3	N/A 0.472 in12 mm	N/A 1.476 in37.5 mm	N/A 1.739 in44.16 mm	N/A 1.531 in38.9 mm	N/A	Add To Cart Request Quote
SBS2.5-1836L	QUOTE	N/A 2	N/A 2.5	N/A 18	N/A Left Hand	N/A B3	N/A 0.472 in12 mm	N/A 1.772 in45 mm	N/A 1.980 in50.3 mm	N/A 1.341 in34.06 mm	N/A	Add To Cart Request Quote
SBS2.5-1845L	QUOTE	N/A 2.5	N/A 2.5	N/A 18	N/A Left Hand	N/A B3	N/A 0.472 in12 mm	N/A 1.772 in45 mm	N/A 1.982 in50.35 mm	N/A 1.307 in33.19 mm	N/A	Add To Cart Request Quote
SBS2.5-2030L	QUOTE	N/A 1.5	N/A 2.5	N/A 20	N/A Left Hand	N/A B3	N/A 0.472 in12 mm	N/A 1.969 in50 mm	N/A 2.143 in54.43 mm	N/A 1.216 in30.88 mm	N/A	Add To Cart Request Quote
SBS2.5-2040L	QUOTE	N/A 2	N/A 2.5	N/A 20	N/A Left Hand	N/A B3	N/A 0.472 in12 mm	N/A 1.969 in50 mm	N/A 2.174 in55.21 mm	N/A 1.717 in43.61 mm	N/A	Add To Cart Request Quote
SBS2.5-3020R	QUOTE	N/A 1.5	N/A 2.5	N/A 30	N/A Right Hand	N/A B4	N/A 0.591 in15 mm	N/A 2.953 in75 mm	N/A 3.035 in77.09 mm	N/A 1.333 in33.86 mm	N/A	Add To Cart Request Quote
SBS2.5-3618R	QUOTE	N/A 2	N/A 2.5	N/A 36	N/A Right Hand	N/A B4	N/A 0.591 in15 mm	N/A 3.543 in90 mm	N/A 3.594 in91.29 mm	N/A 1.117 in28.38 mm	N/A	Add To Cart Request Quote
SBS2.5-4020R	QUOTE	N/A 2	N/A 2.5	N/A 40	N/A Right Hand	N/A B4	N/A 0.591 in15 mm	N/A 3.937 in100 mm	N/A 3.987 in101.27 mm	N/A 1.561 in39.65 mm	N/A	Add To Cart Request Quote
