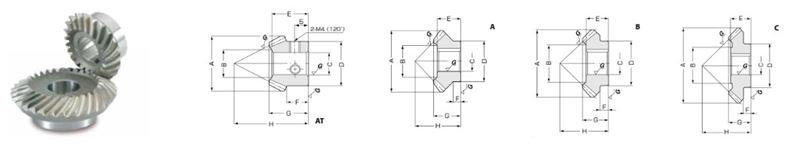

Nissei KSP Ground Spiral Bevel Gears (U type) On KHK Gears

KHK USA Metric Gears

Superior performance with regard to highspeed, low noise, and low vibration.

1 - 25 of 52 | Results Per Page | View | Unit of Measure

1 2 3

Request Information Compare Items Search by Specification

Clear Filter

Gear Ratio

Module

No. of Teeth

Direction of Spiral

Shape

Bore Diameter (C) (in)

Bore Diameter (C) (mm)

Pitch Diameter (in)

Pitch Diameter (mm)

Outer Diameter (A) (in)

Outer Diameter (A) (mm)

Total Length (G) (in)

Total Length (G) (mm)

Item #	List Price	Gear Ratio	Module	No. of Teeth	Direction of Spiral	Shape	Bore Diameter (C)	Pitch Diameter	Outer Diameter (A)	Total Length (G)	CAD	Add To Cart/Request Quote

KSP039002GUP	QUOTE	N/A 2	N/A 1.5	N/A 13	N/A Left Hand	N/A A	N/A 0.315 in8 mm	N/A 0.768 in19.5 mm	N/A 0.827 in21 mm	N/A 0.571 in14.5 mm	N/A	Add To Cart Request Quote
KSP031001GUL	QUOTE	N/A 1	N/A 1.5	N/A 20	N/A Left Hand	N/A A	N/A 0.394 in10 mm	N/A 1.181 in30 mm	N/A 1.201 in30.5 mm	N/A 0.591 in15 mm	N/A	Add To Cart Request Quote
KSP031001GUR	QUOTE	N/A 1	N/A 1.5	N/A 20	N/A Right Hand	N/A A	N/A 0.394 in10 mm	N/A 1.181 in30 mm	N/A 1.201 in30.5 mm	N/A 0.591 in15 mm	N/A	Add To Cart Request Quote
KSP039002GUG	QUOTE	N/A 2	N/A 1.5	N/A 26	N/A Right Hand	N/A B	N/A 0.394 in10 mm	N/A 1.535 in39 mm	N/A 1.516 in38.5 mm	N/A 0.591 in15 mm	N/A	Add To Cart Request Quote
KSP056002GUP	QUOTE	N/A 2	N/A 2	N/A 14	N/A Left Hand	N/A B	N/A 0.315 in8 mm	N/A 1.102 in28 mm	N/A 1.181 in30 mm	N/A 0.512 in13 mm	N/A	Add To Cart Request Quote
KSP0481.5GUP	QUOTE	N/A 1.5	N/A 2	N/A 16	N/A Left Hand	N/A A'	N/A 0.394 in10 mm	N/A 1.260 in32 mm	N/A 1.339 in34 mm	N/A 0.571 in14.5 mm	N/A	Add To Cart Request Quote
KSP040001GUL	QUOTE	N/A 1	N/A 2	N/A 20	N/A Left Hand	N/A B	N/A 0.472 in12 mm	N/A 1.575 in40 mm	N/A 1.575 in40 mm	N/A 0.650 in16.5 mm	N/A	Add To Cart Request Quote
KSP040001GUR	QUOTE	N/A 1	N/A 2	N/A 20	N/A Right Hand	N/A B	N/A 0.472 in12 mm	N/A 1.575 in40 mm	N/A 1.575 in40 mm	N/A 0.650 in16.5 mm	N/A	Add To Cart Request Quote
KSP0481.5GUG	QUOTE	N/A 1.5	N/A 2	N/A 24	N/A Right Hand	N/A B	N/A 0.472 in12 mm	N/A 1.890 in48 mm	N/A 1.890 in48 mm	N/A 0.748 in19 mm	N/A	Add To Cart Request Quote
KSP056002GUG	QUOTE	N/A 2	N/A 2	N/A 28	N/A Right Hand	N/A B	N/A 0.472 in12 mm	N/A 2.205 in56 mm	N/A 2.205 in56 mm	N/A 0.807 in20.5 mm	N/A	Add To Cart Request Quote
KSP0611.5GUP	QUOTE	N/A 1.5	N/A 2.25	N/A 18	N/A Left Hand	N/A A'	N/A 0.472 in12 mm	N/A 1.594 in40.5 mm	N/A 1.654 in42 mm	N/A 0.748 in19 mm	N/A	Add To Cart Request Quote
KSP0611.5GUG	QUOTE	N/A 1.5	N/A 2.25	N/A 27	N/A Right Hand	N/A B	N/A 0.551 in14 mm	N/A 2.392 in60.75 mm	N/A 2.402 in61 mm	N/A 0.925 in23.5 mm	N/A	Add To Cart Request Quote
KSP075002GUP	QUOTE	N/A 2	N/A 2.5	N/A 15	N/A Left Hand	N/A A'	N/A 0.472 in12 mm	N/A 1.476 in37.5 mm	N/A 1.575 in40 mm	N/A 0.768 in19.5 mm	N/A	Add To Cart Request Quote
KSP053001GUL	QUOTE	N/A 1	N/A 2.5	N/A 21	N/A Left Hand	N/A B	N/A 0.551 in14 mm	N/A 2.067 in52.5 mm	N/A 2.087 in53 mm	N/A 0.898 in22.8 mm	N/A	Add To Cart Request Quote
KSP053001GUR	QUOTE	N/A 1	N/A 2.5	N/A 21	N/A Right Hand	N/A B	N/A 0.551 in14 mm	N/A 2.067 in52.5 mm	N/A 2.087 in53 mm	N/A 0.898 in22.8 mm	N/A	Add To Cart Request Quote
KSP075002GUG	QUOTE	N/A 2	N/A 2.5	N/A 30	N/A Right Hand	N/A C	N/A 0.630 in16 mm	N/A 2.953 in75 mm	N/A 2.953 in75 mm	N/A 1.004 in25.5 mm	N/A	Add To Cart Request Quote
KSP0741.5GUP	QUOTE	N/A 1.5	N/A 2.75	N/A 18	N/A Left Hand	N/A A'	N/A 0.551 in14 mm	N/A 1.949 in49.5 mm	N/A 2.047 in52 mm	N/A 0.866 in22 mm	N/A	Add To Cart Request Quote
KSP0741.5GUG	QUOTE	N/A 1.5	N/A 2.75	N/A 27	N/A Right Hand	N/A B	N/A 0.787 in20 mm	N/A 2.923 in74.25 mm	N/A 2.913 in74 mm	N/A 1.142 in29 mm	N/A	Add To Cart Request Quote
KSP096002GUP	QUOTE	N/A 2	N/A 3	N/A 16	N/A Left Hand	N/A B	N/A 0.472 in12 mm	N/A 1.890 in48 mm	N/A 2.087 in53 mm	N/A 0.846 in21.5 mm	N/A	Add To Cart Request Quote
KSP0901.5GUP	QUOTE	N/A 1.5	N/A 3	N/A 20	N/A Left Hand	N/A B	N/A 0.630 in16 mm	N/A 2.362 in60 mm	N/A 2.480 in63 mm	N/A 1.043 in26.5 mm	N/A	Add To Cart Request Quote
KSP066001GUL	QUOTE	N/A 1	N/A 3	N/A 21	N/A Left Hand	N/A B	N/A 0.630 in16 mm	N/A 2.480 in63 mm	N/A 2.559 in65 mm	N/A 1.161 in29.5 mm	N/A	Add To Cart Request Quote
KSP066001GUR	QUOTE	N/A 1	N/A 3	N/A 21	N/A Right Hand	N/A B	N/A 0.630 in16 mm	N/A 2.480 in63 mm	N/A 2.559 in65 mm	N/A 1.161 in29.5 mm	N/A	Add To Cart Request Quote
KSP0901.5GUG	QUOTE	N/A 1.5	N/A 3	N/A 30	N/A Right Hand	N/A B	N/A 0.787 in20 mm	N/A 3.543 in90 mm	N/A 3.543 in90 mm	N/A 1.299 in33 mm	N/A	Add To Cart Request Quote
KSP096002GUG	QUOTE	N/A 2	N/A 3	N/A 32	N/A Right Hand	N/A C	N/A 0.787 in20 mm	N/A 3.780 in96 mm	N/A 3.780 in96 mm	N/A 1.220 in31 mm	N/A	Add To Cart Request Quote
KSP119002GUP	QUOTE	N/A 2	N/A 3.5	N/A 17	N/A Left Hand	N/A A	N/A 0.630 in16 mm	N/A 2.343 in59.5 mm	N/A 2.559 in65 mm	N/A 1.083 in27.5 mm	N/A	Add To Cart Request Quote
