Injection molded, mass-produced productions, suitable for office machines.
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

List Price

Gear Ratio

Module

No. of Teeth

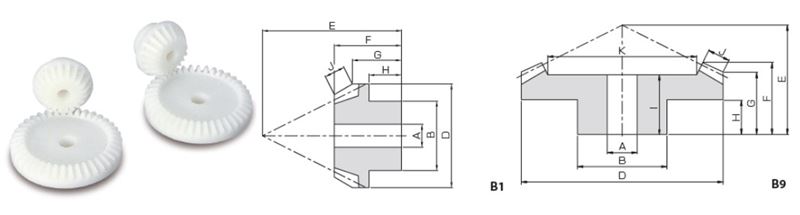

Shape

Bore Diameter (A)

Pitch Diameter (C)

Outer Diameter (D)

Total Length (F)

CAD

Add To Cart/Request Quote
QUOTE N/A 2 N/A 0.5 N/A 20 N/A B1 N/A 0.118 in3 mm N/A 0.394 in10 mm N/A 0.441 in11.2 mm N/A 0.333 in8.46 mm N/A Add To Cart
Request Quote
QUOTE N/A 2 N/A 0.5 N/A 40 N/A B9 N/A 0.157 in4 mm N/A 0.787 in20 mm N/A 0.799 in20.29 mm N/A 0.328 in8.33 mm N/A Add To Cart
Request Quote
QUOTE N/A 2 N/A 0.8 N/A 20 N/A B1 N/A 0.157 in4 mm N/A 0.630 in16 mm N/A 0.706 in17.92 mm N/A 0.453 in11.5 mm N/A Add To Cart
Request Quote
QUOTE N/A 2 N/A 0.8 N/A 40 N/A B9 N/A 0.197 in5 mm N/A 1.260 in32 mm N/A 1.278 in32.47 mm N/A 0.469 in11.91 mm N/A Add To Cart
Request Quote
QUOTE N/A 2 N/A 1 N/A 20 N/A B1 N/A 0.197 in5 mm N/A 0.787 in20 mm N/A 0.882 in22.4 mm N/A 0.570 in14.49 mm N/A Add To Cart
Request Quote
QUOTE N/A 2 N/A 1 N/A 40 N/A B9 N/A 0.236 in6 mm N/A 1.575 in40 mm N/A 1.598 in40.59 mm N/A 0.569 in14.45 mm N/A Add To Cart
Request Quote
