Ground Zerol Bevel Gears (SBZG)
Bevel Gears
A spiral bevel gears with a helix angle less than 10º. Receives forces from the same directions straight bevel gears receive and have excellent precision.
Item # |
List Price |
Gear Ratio |
Module |
No. of Teeth |
Direction of Spiral |

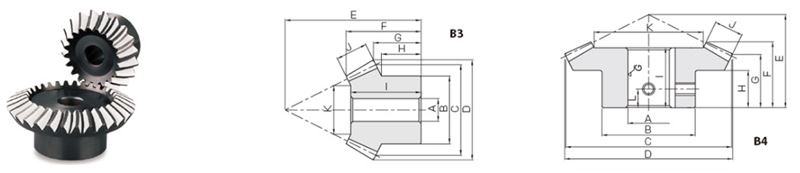

Shape |
Bore Diameter (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Total Length (F) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBZG2-2030L SBZG2-2030L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 1.5 | Module N/A 2 | No. of Teeth N/A 20 | Direction of Spiral N/A Left Hand | Shape N/A B3 | Bore Diameter (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.739 in44.18 mm | Total Length (F) N/A 0.986 in25.05 mm | CAD N/A |
Add To Cart
Request Quote |
| SBZG2-2040L SBZG2-2040L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 2 | Module N/A 2 | No. of Teeth N/A 20 | Direction of Spiral N/A Left Hand | Shape N/A B3 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.762 in44.76 mm | Total Length (F) N/A 1.344 in34.15 mm | CAD N/A |
Add To Cart
Request Quote |
| SBZG2-3020R SBZG2-3020R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 1.5 | Module N/A 2 | No. of Teeth N/A 30 | Direction of Spiral N/A Right Hand | Shape N/A B4 | Bore Diameter (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.447 in62.16 mm | Total Length (F) N/A 1.043 in26.48 mm | CAD N/A |
Add To Cart
Request Quote |
| SBZG2-4020R SBZG2-4020R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 2 | Module N/A 2 | No. of Teeth N/A 40 | Direction of Spiral N/A Right Hand | Shape N/A B4 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 3.150 in80 mm | Outer Diameter (D) N/A 3.212 in81.58 mm | Total Length (F) N/A 1.256 in31.91 mm | CAD N/A |
Add To Cart
Request Quote |
| SBZG2.5-2030L SBZG2.5-2030L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 1.5 | Module N/A 2.5 | No. of Teeth N/A 20 | Direction of Spiral N/A Left Hand | Shape N/A B3 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.174 in55.23 mm | Total Length (F) N/A 1.222 in31.05 mm | CAD N/A |
Add To Cart
Request Quote |
| SBZG2.5-2040L SBZG2.5-2040L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 2 | Module N/A 2.5 | No. of Teeth N/A 20 | Direction of Spiral N/A Left Hand | Shape N/A B3 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.204 in55.99 mm | Total Length (F) N/A 1.723 in43.77 mm | CAD N/A |
Add To Cart
Request Quote |
| SBZG2.5-3020R SBZG2.5-3020R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 1.5 | Module N/A 2.5 | No. of Teeth N/A 30 | Direction of Spiral N/A Right Hand | Shape N/A B4 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.062 in77.77 mm | Total Length (F) N/A 1.326 in33.69 mm | CAD N/A |
Add To Cart
Request Quote |
| SBZG2.5-4020R SBZG2.5-4020R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 2 | Module N/A 2.5 | No. of Teeth N/A 40 | Direction of Spiral N/A Right Hand | Shape N/A B4 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 3.937 in100 mm | Outer Diameter (D) N/A 4.016 in102.01 mm | Total Length (F) N/A 1.542 in39.16 mm | CAD N/A |
Add To Cart
Request Quote |
| SBZG3-2030L SBZG3-2030L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 1.5 | Module N/A 3 | No. of Teeth N/A 20 | Direction of Spiral N/A Left Hand | Shape N/A B3 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.611 in66.32 mm | Total Length (F) N/A 1.594 in40.5 mm | CAD N/A |
Add To Cart
Request Quote |
| SBZG3-2040L SBZG3-2040L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 2 | Module N/A 3 | No. of Teeth N/A 20 | Direction of Spiral N/A Left Hand | Shape N/A B3 | Bore Diameter (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.646 in67.21 mm | Total Length (F) N/A 2.000 in50.81 mm | CAD N/A |
Add To Cart
Request Quote |
| SBZG3-3020R SBZG3-3020R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 1.5 | Module N/A 3 | No. of Teeth N/A 30 | Direction of Spiral N/A Right Hand | Shape N/A B4 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 3.543 in90 mm | Outer Diameter (D) N/A 3.672 in93.27 mm | Total Length (F) N/A 1.378 in35.01 mm | CAD N/A |
Add To Cart
Request Quote |
| SBZG3-4020R SBZG3-4020R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 2 | Module N/A 3 | No. of Teeth N/A 40 | Direction of Spiral N/A Right Hand | Shape N/A B4 | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 4.724 in120 mm | Outer Diameter (D) N/A 4.815 in122.31 mm | Total Length (F) N/A 1.783 in45.3 mm | CAD N/A |
Add To Cart
Request Quote |
