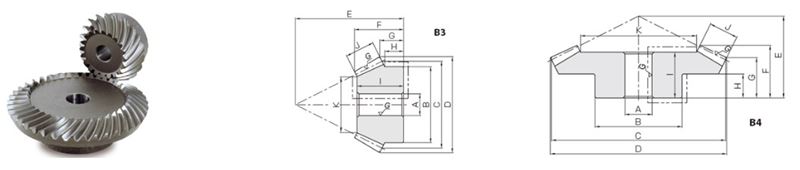

Ground Spiral Bevel Gears (MBSG)
Bevel Gears
High strength, abrasion-resistant and compact for high-speed & torque use.
Item # |
List Price |
Gear Ratio |
Module |
No. of Teeth |
Direction of Spiral |
Shape |
Bore Diameter (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Total Length (F) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MBSG2-2040L MBSG2-2040L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 2 | Module N/A 2 | No. of Teeth N/A 20 | Direction of Spiral N/A Left Hand | Shape N/A B3 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.736 in44.1 mm | Total Length (F) N/A 1.109 in28.16 mm | CAD N/A |
Add To Cart
Request Quote |
| MBSG2-4020R MBSG2-4020R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 2 | Module N/A 2 | No. of Teeth N/A 40 | Direction of Spiral N/A Right Hand | Shape N/A B4 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 3.150 in80 mm | Outer Diameter (D) N/A 3.193 in81.1 mm | Total Length (F) N/A 1.251 in31.78 mm | CAD N/A |
Add To Cart
Request Quote |
| MBSG2.5-2040L MBSG2.5-2040L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 2 | Module N/A 2.5 | No. of Teeth N/A 20 | Direction of Spiral N/A Left Hand | Shape N/A B3 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.170 in55.12 mm | Total Length (F) N/A 1.221 in31.01 mm | CAD N/A |
Add To Cart
Request Quote |
| MBSG2.5-4020R MBSG2.5-4020R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 2 | Module N/A 2.5 | No. of Teeth N/A 40 | Direction of Spiral N/A Right Hand | Shape N/A B4 | Bore Diameter (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 3.937 in100 mm | Outer Diameter (D) N/A 3.988 in101.29 mm | Total Length (F) N/A 1.313 in33.35 mm | CAD N/A |
Add To Cart
Request Quote |
| MBSG3-2040L MBSG3-2040L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 2 | Module N/A 3 | No. of Teeth N/A 20 | Direction of Spiral N/A Left Hand | Shape N/A B3 | Bore Diameter (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.600 in66.03 mm | Total Length (F) N/A 1.531 in38.9 mm | CAD N/A |
Add To Cart
Request Quote |
| MBSG3-4020R MBSG3-4020R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 2 | Module N/A 3 | No. of Teeth N/A 40 | Direction of Spiral N/A Right Hand | Shape N/A B4 | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 4.724 in120 mm | Outer Diameter (D) N/A 4.786 in121.57 mm | Total Length (F) N/A 1.567 in39.81 mm | CAD N/A |
Add To Cart
Request Quote |
| MBSG4-2040L MBSG4-2040L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 2 | Module N/A 4 | No. of Teeth N/A 20 | Direction of Spiral N/A Left Hand | Shape N/A B3 | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.150 in80 mm | Outer Diameter (D) N/A 3.483 in88.46 mm | Total Length (F) N/A 1.787 in45.38 mm | CAD N/A |
Add To Cart
Request Quote |
| MBSG4-4020R MBSG4-4020R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 2 | Module N/A 4 | No. of Teeth N/A 40 | Direction of Spiral N/A Right Hand | Shape N/A B4 | Bore Diameter (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 6.299 in160 mm | Outer Diameter (D) N/A 6.380 in162.06 mm | Total Length (F) N/A 1.900 in48.27 mm | CAD N/A |
Add To Cart
Request Quote |
