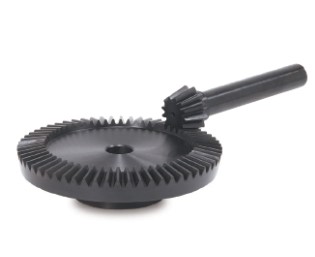

Bevel Gears & Pinion Shafts (SBY)
Bevel Gears
Popular series of straight bevel gears for many uses.
Item # |
List Price |
Gear Ratio |
Module |
No. of Teeth |

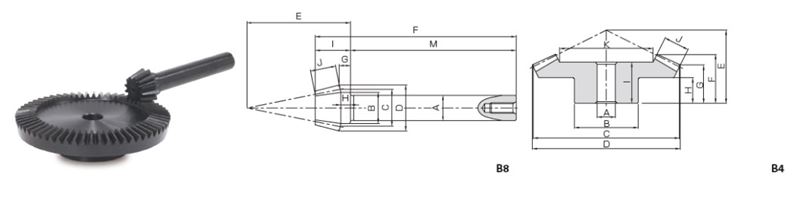

Shape |
Bore Diameter (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Total Length (F) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SB1.5-1260 SB1.5-1260/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 5 | Module N/A 1.5 | No. of Teeth N/A 12 | Shape N/A B8 | Bore Diameter (A) N/A 0.480 in12.2 mm | Pitch Diameter (C) N/A 0.709 in18 mm | Outer Diameter (D) N/A 0.876 in22.24 mm | Total Length (F) N/A 3.821 in97.06 mm | CAD N/A |
Add To Cart
Request Quote |
| SB1.5-6012 SB1.5-6012/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 5 | Module N/A 1.5 | No. of Teeth N/A 60 | Shape N/A B4 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 3.543 in90 mm | Outer Diameter (D) N/A 3.556 in90.33 mm | Total Length (F) N/A 0.941 in23.89 mm | CAD N/A |
Add To Cart
Request Quote |
| SB2-1260 SB2-1260/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 5 | Module N/A 2 | No. of Teeth N/A 12 | Shape N/A B8 | Bore Diameter (A) N/A 0.598 in15.2 mm | Pitch Diameter (C) N/A 0.945 in24 mm | Outer Diameter (D) N/A 1.167 in29.65 mm | Total Length (F) N/A 4.609 in117.08 mm | CAD N/A |
Add To Cart
Request Quote |
| SB2-6012 SB2-6012/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 5 | Module N/A 2 | No. of Teeth N/A 60 | Shape N/A B4 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 4.724 in120 mm | Outer Diameter (D) N/A 4.741 in120.43 mm | Total Length (F) N/A 1.254 in31.85 mm | CAD N/A |
Add To Cart
Request Quote |
| SB2.5-1260 SB2.5-1260/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 5 | Module N/A 2.5 | No. of Teeth N/A 12 | Shape N/A B8 | Bore Diameter (A) N/A 0.795 in20.2 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.459 in37.06 mm | Total Length (F) N/A 5.634 in143.1 mm | CAD N/A |
Add To Cart
Request Quote |
| SB2.5-6012 SB2.5-6012/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 5 | Module N/A 2.5 | No. of Teeth N/A 60 | Shape N/A B4 | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 5.906 in150 mm | Outer Diameter (D) N/A 5.927 in150.54 mm | Total Length (F) N/A 1.567 in39.81 mm | CAD N/A |
Add To Cart
Request Quote |
| SB3-1260 SB3-1260/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 5 | Module N/A 3 | No. of Teeth N/A 12 | Shape N/A B8 | Bore Diameter (A) N/A 0.994 in25.25 mm | Pitch Diameter (C) N/A 1.417 in36 mm | Outer Diameter (D) N/A 1.751 in44.48 mm | Total Length (F) N/A 6.779 in172.19 mm | CAD N/A |
Add To Cart
Request Quote |
| SB3-6012 SB3-6012/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Gear Ratio N/A 5 | Module N/A 3 | No. of Teeth N/A 60 | Shape N/A B4 | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 7.087 in180 mm | Outer Diameter (D) N/A 7.112 in180.65 mm | Total Length (F) N/A 1.867 in47.43 mm | CAD N/A |
Add To Cart
Request Quote |
