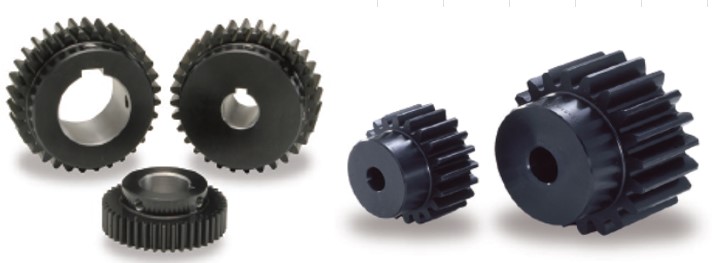

CP Thermal Refined Spur Gears (KSSCP) On KHK Gears

1 - 25 of 142 | Results Per Page | View | Unit of Measure

1 2 3 4 5 »

Request Information Compare Items

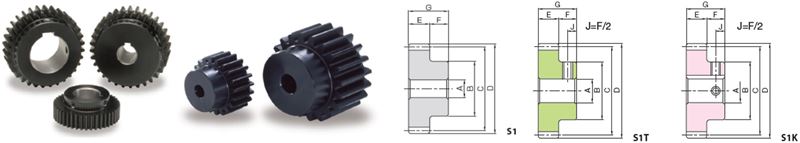

Item #	List Price	Module	No. of Teeth	Shape	Bore Diameter (A)	Pitch Diameter (C)	Outer Diameter (D)	Total Length (G)	CAD	Add To Cart/Request Quote

KSSCP5-20	QUOTE	N/A 1.59155	N/A 20	N/A S1	N/A 0.315 in8 mm	N/A 1.253 in31.83 mm	N/A 1.378 in35.01 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-20H	QUOTE	N/A 1.59155	N/A 20	N/A S1	N/A 0.315 in8 mm	N/A 1.253 in31.83 mm	N/A 1.378 in35.01 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-20HJ10	QUOTE	N/A 1.59155	N/A 20	N/A S1K	N/A 0.315 in8 mm	N/A 1.253 in31.83 mm	N/A 1.378 in35.01 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-20HJ12	QUOTE	N/A 1.59155	N/A 20	N/A S1K	N/A 0.315 in8 mm	N/A 1.253 in31.83 mm	N/A 1.378 in35.01 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-20J10	QUOTE	N/A 1.59155	N/A 20	N/A S1K	N/A 0.315 in8 mm	N/A 1.253 in31.83 mm	N/A 1.378 in35.01 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-20J12	QUOTE	N/A 1.59155	N/A 20	N/A S1K	N/A 0.315 in8 mm	N/A 1.253 in31.83 mm	N/A 1.378 in35.01 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-20J8	QUOTE	N/A 1.59155	N/A 20	N/A S1T	N/A 0.315 in8 mm	N/A 1.253 in31.83 mm	N/A 1.378 in35.01 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-25	QUOTE	N/A 1.59155	N/A 25	N/A S1	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.692 in42.97 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-25H	QUOTE	N/A 1.59155	N/A 25	N/A S1	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.692 in42.97 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-25HJ12	QUOTE	N/A 1.59155	N/A 25	N/A S1K	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.692 in42.97 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-25HJ14	QUOTE	N/A 1.59155	N/A 25	N/A S1K	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.692 in42.97 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-25HJ15	QUOTE	N/A 1.59155	N/A 25	N/A S1K	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.692 in42.97 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-25HJ16	QUOTE	N/A 1.59155	N/A 25	N/A S1K	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.692 in42.97 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-25HJ17	QUOTE	N/A 1.59155	N/A 25	N/A S1K	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.692 in42.97 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-25J10	QUOTE	N/A 1.59155	N/A 25	N/A S1K	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.692 in42.97 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-25J12	QUOTE	N/A 1.59155	N/A 25	N/A S1K	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.692 in42.97 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-25J14	QUOTE	N/A 1.59155	N/A 25	N/A S1K	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.692 in42.97 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-25J15	QUOTE	N/A 1.59155	N/A 25	N/A S1K	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.692 in42.97 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-25J16	QUOTE	N/A 1.59155	N/A 25	N/A S1K	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.692 in42.97 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-25J17	QUOTE	N/A 1.59155	N/A 25	N/A S1K	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.692 in42.97 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-30	QUOTE	N/A 1.59155	N/A 30	N/A S1	N/A 0.394 in10 mm	N/A 1.880 in47.75 mm	N/A 2.005 in50.93 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-30H	QUOTE	N/A 1.59155	N/A 30	N/A S1	N/A 0.394 in10 mm	N/A 1.880 in47.75 mm	N/A 2.005 in50.93 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-30HJ12	QUOTE	N/A 1.59155	N/A 30	N/A S1K	N/A 0.394 in10 mm	N/A 1.880 in47.75 mm	N/A 2.005 in50.93 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-30HJ14	QUOTE	N/A 1.59155	N/A 30	N/A S1K	N/A 0.394 in10 mm	N/A 1.880 in47.75 mm	N/A 2.005 in50.93 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSSCP5-30HJ15	QUOTE	N/A 1.59155	N/A 30	N/A S1K	N/A 0.394 in10 mm	N/A 1.880 in47.75 mm	N/A 2.005 in50.93 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
