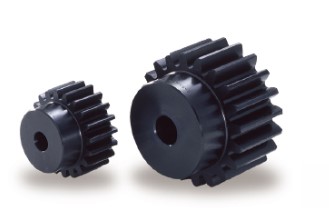

CP Spur Gears (SSCP) On KHK Gears

KHK USA Metric Gears

Low cost and widely applicable, with a large selection of pitches and numbers of teeth.

1 - 25 of 107 | Results Per Page | View | Unit of Measure

1 2 3 4 5

Request Information Compare Items Search by Specification

Clear Filter

Bore Type

Module

No. of Teeth

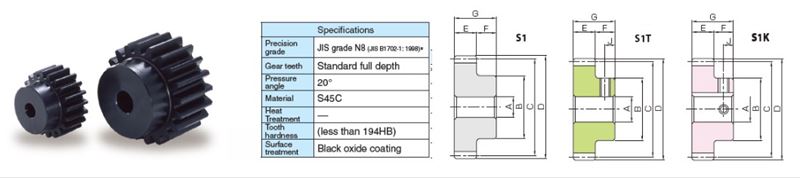

Shape

Circular Pitch

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Total Length (G) (in)

Total Length (G) (mm)

Item #	List Price	Bore Type	Module	No. of Teeth	Shape	Circular Pitch	Bore Diameter (A)	Pitch Diameter (C)	Outer Diameter (D)	Total Length (G)	CAD	Add To Cart/Request Quote

SSCP2.5-20	QUOTE	N/A Plain	N/A 0.7958	N/A 20	N/A S1	N/A 2.5	N/A 0.236 in6 mm	N/A 0.627 in15.92 mm	N/A 0.689 in17.51 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
SSCP2.5-20H	QUOTE	N/A Plain	N/A 0.7958	N/A 20	N/A S1	N/A 2.5	N/A 0.236 in6 mm	N/A 0.627 in15.92 mm	N/A 0.689 in17.51 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
SSCP2.5-20J6	QUOTE	N/A Finished	N/A 0.7958	N/A 20	N/A S1T	N/A 2.5	N/A 0.236 in6 mm	N/A 0.627 in15.92 mm	N/A 0.689 in17.51 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
SSCP2.5-25	QUOTE	N/A Plain	N/A 0.7958	N/A 25	N/A S1	N/A 2.5	N/A 0.315 in8 mm	N/A 0.783 in19.89 mm	N/A 0.846 in21.49 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
SSCP2.5-25H	QUOTE	N/A Plain	N/A 0.7958	N/A 25	N/A S1	N/A 2.5	N/A 0.315 in8 mm	N/A 0.783 in19.89 mm	N/A 0.846 in21.49 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
SSCP2.5-25J8	QUOTE	N/A Finished	N/A 0.7958	N/A 25	N/A S1T	N/A 2.5	N/A 0.315 in8 mm	N/A 0.783 in19.89 mm	N/A 0.846 in21.49 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
SSCP2.5-30	QUOTE	N/A Plain	N/A 0.7958	N/A 30	N/A S1	N/A 2.5	N/A 0.315 in8 mm	N/A 0.940 in23.87 mm	N/A 1.002 in25.46 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
SSCP2.5-30H	QUOTE	N/A Plain	N/A 0.7958	N/A 30	N/A S1	N/A 2.5	N/A 0.315 in8 mm	N/A 0.940 in23.87 mm	N/A 1.002 in25.46 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
SSCP2.5-30J8	QUOTE	N/A Finished	N/A 0.7958	N/A 30	N/A S1T	N/A 2.5	N/A 0.315 in8 mm	N/A 0.940 in23.87 mm	N/A 1.002 in25.46 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
SSCP2.5-40	QUOTE	N/A Plain	N/A 0.7958	N/A 40	N/A S1	N/A 2.5	N/A 0.394 in10 mm	N/A 1.253 in31.83 mm	N/A 1.316 in33.42 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
SSCP2.5-40H	QUOTE	N/A Plain	N/A 0.7958	N/A 40	N/A S1	N/A 2.5	N/A 0.394 in10 mm	N/A 1.253 in31.83 mm	N/A 1.316 in33.42 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
SSCP2.5-40J10	QUOTE	N/A Finished	N/A 0.7958	N/A 40	N/A S1K	N/A 2.5	N/A 0.394 in10 mm	N/A 1.253 in31.83 mm	N/A 1.316 in33.42 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
SSCP2.5-40J12	QUOTE	N/A Finished	N/A 0.7958	N/A 40	N/A S1K	N/A 2.5	N/A 0.472 in12 mm	N/A 1.253 in31.83 mm	N/A 1.316 in33.42 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
SSCP2.5-40J14	QUOTE	N/A Finished	N/A 0.7958	N/A 40	N/A S1K	N/A 2.5	N/A 0.551 in14 mm	N/A 1.253 in31.83 mm	N/A 1.316 in33.42 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
SSCP2.5-40J15	QUOTE	N/A Finished	N/A 0.7958	N/A 40	N/A S1K	N/A 2.5	N/A 0.591 in15 mm	N/A 1.253 in31.83 mm	N/A 1.316 in33.42 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
SSCP5-20H	QUOTE	N/A Plain	N/A 1.5915	N/A 20	N/A S1	N/A 5	N/A 0.315 in8 mm	N/A 1.253 in31.83 mm	N/A 1.378 in35.01 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
SSCP5-25H	QUOTE	N/A Plain	N/A 1.5915	N/A 25	N/A S1	N/A 5	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.692 in42.97 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
SSCP5-30H	QUOTE	N/A Plain	N/A 1.5915	N/A 30	N/A S1	N/A 5	N/A 0.394 in10 mm	N/A 1.880 in47.75 mm	N/A 2.005 in50.93 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
SSCP5-40H	QUOTE	N/A Plain	N/A 1.5915	N/A 40	N/A S1	N/A 5	N/A 0.472 in12 mm	N/A 2.506 in63.66 mm	N/A 2.632 in66.85 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
SSCP5-20	QUOTE	N/A Plain	N/A 1.59155	N/A 20	N/A S1	N/A 5	N/A 0.315 in8 mm	N/A 1.253 in31.83 mm	N/A 1.378 in35.01 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
SSCP5-20J10	QUOTE	N/A Finished	N/A 1.59155	N/A 20	N/A S1K	N/A 5	N/A 0.394 in10 mm	N/A 1.253 in31.83 mm	N/A 1.378 in35.01 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
SSCP5-20J12	QUOTE	N/A Finished	N/A 1.59155	N/A 20	N/A S1K	N/A 5	N/A 0.472 in12 mm	N/A 1.253 in31.83 mm	N/A 1.378 in35.01 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
SSCP5-20J8	QUOTE	N/A Finished	N/A 1.59155	N/A 20	N/A S1T	N/A 5	N/A 0.315 in8 mm	N/A 1.253 in31.83 mm	N/A 1.378 in35.01 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
SSCP5-25	QUOTE	N/A Plain	N/A 1.59155	N/A 25	N/A S1	N/A 5	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.692 in42.97 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
SSCP5-25J10	QUOTE	N/A Finished	N/A 1.59155	N/A 25	N/A S1K	N/A 5	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.692 in42.97 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote

1 - 25 of 107 | Results Per Page | View | Unit of Measure

1 2 3 4 5
