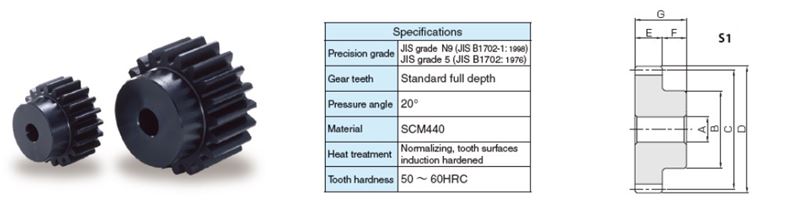

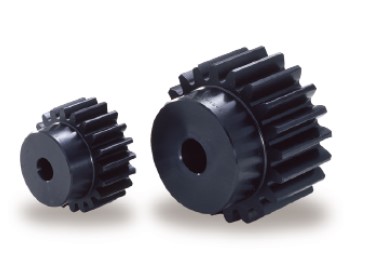

CP Hardened Spur Gears (KSCP)
CP Rack & Pinions
Thermal refined and tooth-hardened chromolyracks, excellent in abrasion resistance. Use as mating pinions for KRCPF(-H) Racks.
Item # |
List Price |
Module |
No. of Teeth |
Shape |
Circular Pitch |
Bore Diameter (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Total Length (G) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KSCP5-20 KSCP5-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.59155 | No. of Teeth N/A 20 | Shape N/A S1 | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.253 in31.83 mm | Outer Diameter (D) N/A 1.378 in35.01 mm | Total Length (G) N/A 1.181 in30 mm | CAD N/A |
Add To Cart
Request Quote |
| KSCP5-25 KSCP5-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.59155 | No. of Teeth N/A 25 | Shape N/A S1 | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.567 in39.79 mm | Outer Diameter (D) N/A 1.692 in42.97 mm | Total Length (G) N/A 1.181 in30 mm | CAD N/A |
Add To Cart
Request Quote |
| KSCP5-30 KSCP5-30/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.59155 | No. of Teeth N/A 25 | Shape N/A S1 | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 1.880 in47.75 mm | Outer Diameter (D) N/A 2.005 in50.93 mm | Total Length (G) N/A 1.181 in30 mm | CAD N/A |
Add To Cart
Request Quote |
| KSCP5-40 KSCP5-40/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.59155 | No. of Teeth N/A 40 | Shape N/A S1 | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 2.506 in63.66 mm | Outer Diameter (D) N/A 2.632 in66.85 mm | Total Length (G) N/A 1.181 in30 mm | CAD N/A |
Add To Cart
Request Quote |
| KSCP10-20 KSCP10-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | No. of Teeth N/A 20 | Shape N/A S1 | Circular Pitch N/A 10 | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.506 in63.66 mm | Outer Diameter (D) N/A 2.757 in70.03 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| KSCP10-25 KSCP10-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | No. of Teeth N/A 25 | Shape N/A S1 | Circular Pitch N/A 10 | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.133 in79.58 mm | Outer Diameter (D) N/A 3.383 in85.94 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| KSCP10-30 KSCP10-30/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | No. of Teeth N/A 30 | Shape N/A S1 | Circular Pitch N/A 10 | Bore Diameter (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 3.759 in95.49 mm | Outer Diameter (D) N/A 4.010 in101.86 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| KSCP10-40 KSCP10-40/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.1831 | No. of Teeth N/A 40 | Shape N/A S1 | Circular Pitch N/A 10 | Bore Diameter (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 5.013 in127.32 mm | Outer Diameter (D) N/A 5.263 in133.69 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
