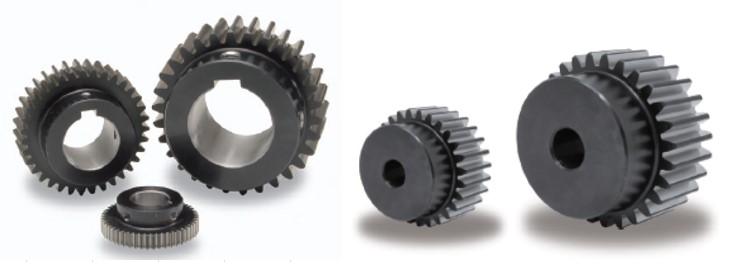

CP Ground Spur Gears (KSCPG) On KHK Gears

1 - 25 of 72 | Results Per Page | View | Unit of Measure

1 2 3

Request Information Compare Items

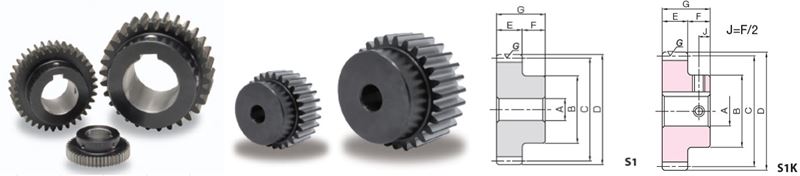

Item #	List Price	Module	No. of Teeth	Circular Pitch	Bore Diameter (A)	Pitch Diameter (C)	Outer Diameter (D)	Total Length (G)	CAD	Add To Cart/Request Quote

KSCPG5-20	QUOTE	N/A 1.59155	N/A 20	N/A	N/A 0.394 in10 mm	N/A 1.253 in31.83 mm	N/A 1.432 in36.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-20J10	QUOTE	N/A 1.59155	N/A 20	N/A	N/A 0.394 in10 mm	N/A 1.253 in31.83 mm	N/A 1.432 in36.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-20J12	QUOTE	N/A 1.59155	N/A 20	N/A	N/A 0.394 in10 mm	N/A 1.253 in31.83 mm	N/A 1.432 in36.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-25	QUOTE	N/A 1.59155	N/A 25	N/A	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.747 in44.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-25J10	QUOTE	N/A 1.59155	N/A 25	N/A	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.747 in44.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-25J12	QUOTE	N/A 1.59155	N/A 25	N/A	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.747 in44.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-25J14	QUOTE	N/A 1.59155	N/A 25	N/A	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.747 in44.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-25J15	QUOTE	N/A 1.59155	N/A 25	N/A	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.747 in44.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-25J16	QUOTE	N/A 1.59155	N/A 25	N/A	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.747 in44.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-25J17	QUOTE	N/A 1.59155	N/A 25	N/A	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.747 in44.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-25J18	QUOTE	N/A 1.59155	N/A 25	N/A	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.747 in44.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-25J19	QUOTE	N/A 1.59155	N/A 25	N/A	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.747 in44.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-30	QUOTE	N/A 1.59155	N/A 30	N/A	N/A 0.591 in15 mm	N/A 1.880 in47.75 mm	N/A 2.062 in52.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-30J15	QUOTE	N/A 1.59155	N/A 30	N/A	N/A 0.591 in15 mm	N/A 1.880 in47.75 mm	N/A 2.062 in52.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-30J16	QUOTE	N/A 1.59155	N/A 30	N/A	N/A 0.591 in15 mm	N/A 1.880 in47.75 mm	N/A 2.062 in52.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-30J17	QUOTE	N/A 1.59155	N/A 30	N/A	N/A 0.591 in15 mm	N/A 1.880 in47.75 mm	N/A 2.062 in52.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-30J18	QUOTE	N/A 1.59155	N/A 30	N/A	N/A 0.591 in15 mm	N/A 1.880 in47.75 mm	N/A 2.062 in52.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-30J19	QUOTE	N/A 1.59155	N/A 30	N/A	N/A 0.591 in15 mm	N/A 1.880 in47.75 mm	N/A 2.062 in52.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-30J20	QUOTE	N/A 1.59155	N/A 30	N/A	N/A 0.591 in15 mm	N/A 1.880 in47.75 mm	N/A 2.062 in52.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-30J22	QUOTE	N/A 1.59155	N/A 30	N/A	N/A 0.591 in15 mm	N/A 1.880 in47.75 mm	N/A 2.062 in52.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-40	QUOTE	N/A 1.59155	N/A 40	N/A	N/A 0.591 in15 mm	N/A 2.506 in63.66 mm	N/A 2.692 in68.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-40J15	QUOTE	N/A 1.59155	N/A 40	N/A	N/A 0.591 in15 mm	N/A 2.506 in63.66 mm	N/A 2.692 in68.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-40J16	QUOTE	N/A 1.59155	N/A 40	N/A	N/A 0.591 in15 mm	N/A 2.506 in63.66 mm	N/A 2.692 in68.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-40J17	QUOTE	N/A 1.59155	N/A 40	N/A	N/A 0.591 in15 mm	N/A 2.506 in63.66 mm	N/A 2.692 in68.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
KSCPG5-40J18	QUOTE	N/A 1.59155	N/A 40	N/A	N/A 0.591 in15 mm	N/A 2.506 in63.66 mm	N/A 2.692 in68.37 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote

1 - 25 of 72 | Results Per Page | View | Unit of Measure

1 2 3
